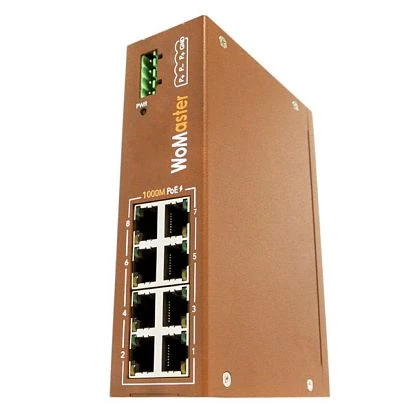

DP208-LV
WoMaster
SKU: 57601600
Industrial PoE Switch, 8x10/100/1000Base-T, PoE, 12..40VDC, -40..70 C Operating Temperature
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
4000
Packet Buffer Size
1.5 kBit
Jumbo Frame Size
9.22 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Depth
45 mm
Height
145 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
0.54 kg
Gross Weight
0.7 kg
