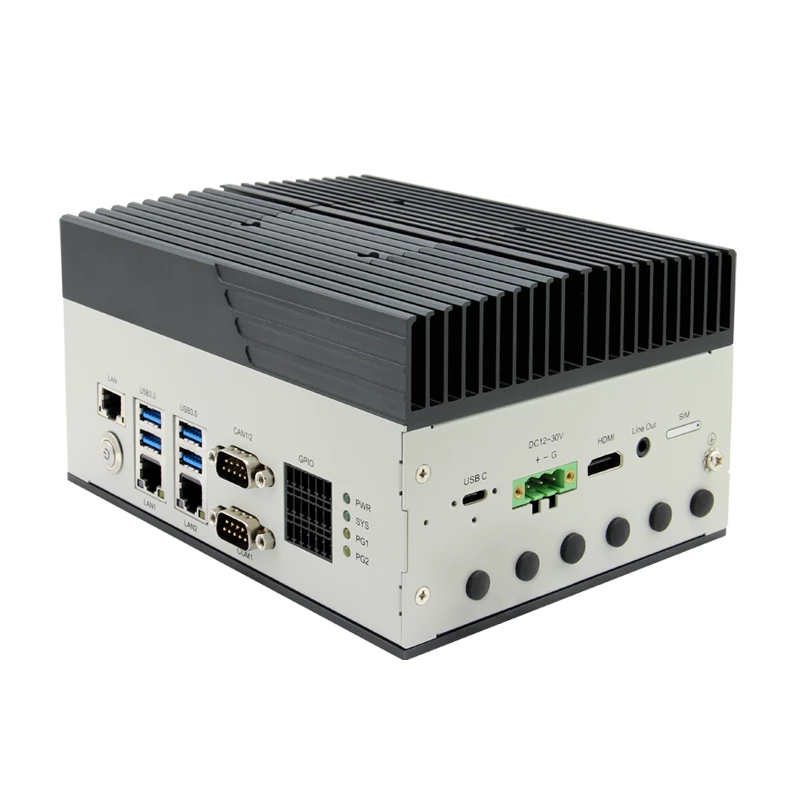

Coeus-3901T-64G
NEXCOM
SKU: 57956300
Embedded Edge AI System, NVIDIA Jetson AGX Orin 12-Core CPU, 64GB LPDDR5 RAM, Ampere 2048-Core GPU, 64GB eMMC, HDMI, 3x2.5GbE LAN, 4xUSB 3.0, 1xUSB-C OTG, 2xCOM, 2xCAN, 16-bit GPIO, 2xMIPI, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 12-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson AGX Orin (12-Core)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
Maximum Memory
64 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 2048-cores, 64 Tensor Cores
Interfaces
HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
2
USB Total
4
USB v3.x
4
Digital Input-Output
GPIO
8xDigital In / 8xDigital Out
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 1, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional), 5G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, 3xRJ45 Ethernet, 4xUSB, DC input (terminal block), GPIO (terminal block), USB type C, DB9 CAN
System Power Input
Input Voltage DC
12..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
183 mm
Height
96.8 mm
Depth
135 mm
Operating Conditions
Operating Temperature
-10..55 °C
Humidity
10-95%
Dimensions
Net Weight
1.95 kg
Gross Weight
3.15 kg
