Industrial Automation

Operator Panels and Terminals (HMI)

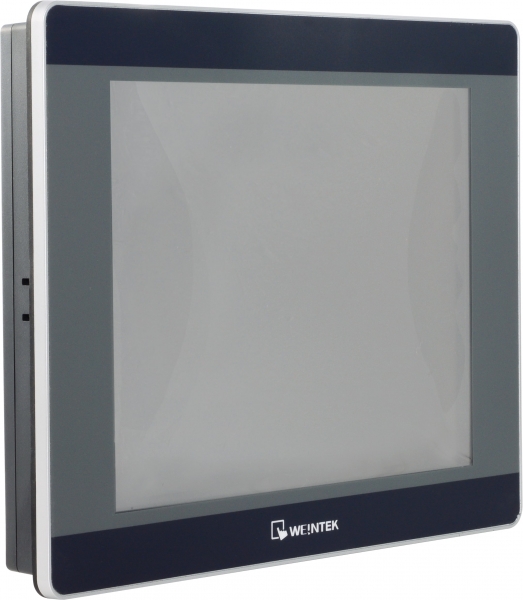

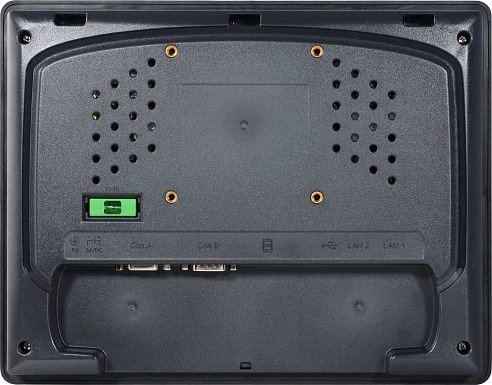

cMT3090

cMT3090

SKU: 08379700

Cloud HMI 9.7" TFT LCD, 262K colors, 1024x768x 32-bit RISC Cortex A9 1GHz CPU, 1GB RAM, 4GB Flash

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded, Wall VESA 75

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

9.7 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Contrast Ratio

500~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

19..28 V

Dimensions and weight

Width

260 mm

Depth

36.5 mm

Height

203 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded, Wall VESA 75

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

9.7 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Contrast Ratio

500~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

19..28 V

Dimensions and weight

Width

260 mm

Depth

36.5 mm

Height

203 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded, Wall VESA 75

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

9.7 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Contrast Ratio

500~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

19..28 V

Dimensions and weight

Width

260 mm

Depth

36.5 mm

Height

203 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded, Wall VESA 75

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

9.7 "

Maximum resolution

1024x768 Dots

Brightness

350 Cd/m2

Contrast Ratio

500~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

19..28 V

Dimensions and weight

Width

260 mm

Depth

36.5 mm

Height

203 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Documentation

Datasheet cMT3090 User Manual EasyBuilderPro PLC connection_guide Installation Instruction cMT3090

Documentation

Datasheet cMT3090 User Manual EasyBuilderPro PLC connection_guide Installation Instruction cMT3090

Documentation

Datasheet cMT3090 User Manual EasyBuilderPro PLC connection_guide Installation Instruction cMT3090

Documentation

Datasheet cMT3090 User Manual EasyBuilderPro PLC connection_guide Installation Instruction cMT3090
