Industrial Automation

Operator Panels and Terminals (HMI)

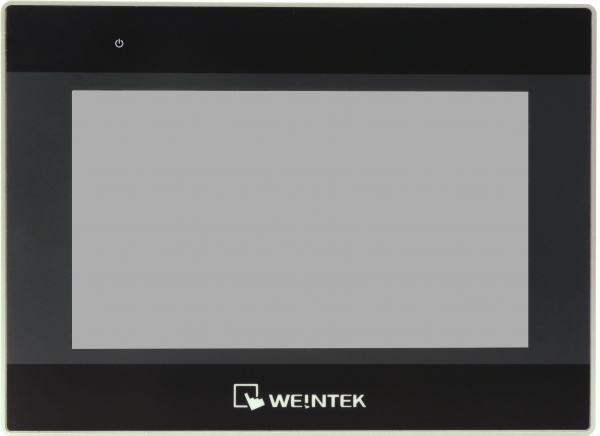

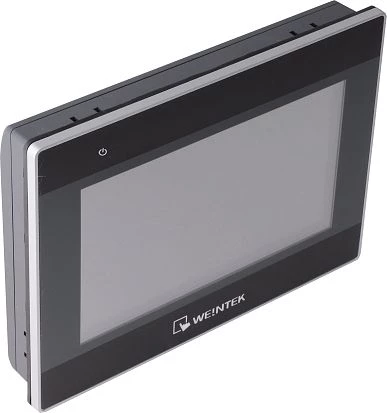

cMT3071

cMT3071

SKU: 08379400

Cloud HMI, 7" TFT LCD 800x480, 32-bit Cortex A9 1GHz CPU, 1GB RAM, 4GB Flash

Price on request

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

7 "

Maximum resolution

800x480 Dots

Brightness

400 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

10..28 V

Dimensions and weight

Width

200 mm

Depth

35 mm

Height

146 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

7 "

Maximum resolution

800x480 Dots

Brightness

400 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

10..28 V

Dimensions and weight

Width

200 mm

Depth

35 mm

Height

146 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

7 "

Maximum resolution

800x480 Dots

Brightness

400 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

10..28 V

Dimensions and weight

Width

200 mm

Depth

35 mm

Height

146 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

Embedded

Protection Level of Chassis

IP65

Display

Display Type

LCD TFT

Diagonal

7 "

Maximum resolution

800x480 Dots

Brightness

400 Cd/m2

Contrast Ratio

800~1

Touch Screen

Touch Screen Type

Resistive

Memory

Default on Board Memory

1 GB

Installed drive

Flash Memory Capacity

4 MB

Ethernet

Total Ethernet

2

10/100 Mbit/s

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Supported Protocols

Industrial Protocols

CAN, CANopen

Software

Development Software

EasyBuilder Pro

System Power Input

Input Voltage DC

10..28 V

Dimensions and weight

Width

200 mm

Depth

35 mm

Height

146 mm

Operating Conditions

Operating Temperature

0..50 °C

Standards and Certifications

Safety

UL/cUL

Dimensions

Gross Weight

0.3 kg

Documentation

Datasheet cMT3071 Installation Instruction cMT3071, cMT3072

Software

Documentation

Datasheet cMT3071 Installation Instruction cMT3071, cMT3072

Software

Documentation

Datasheet cMT3071 Installation Instruction cMT3071, cMT3072

Software

Documentation

Datasheet cMT3071 Installation Instruction cMT3071, cMT3072

Software
