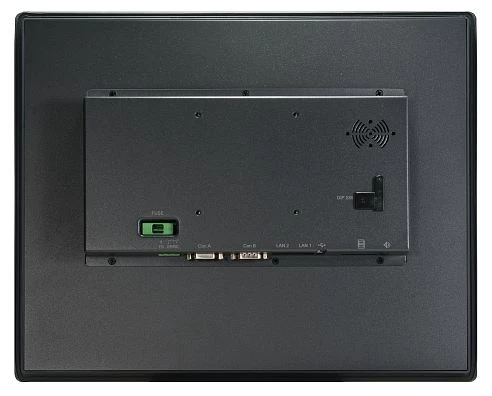

cMT2158X

cMT2158X

Weintek
SKU: 09384000
cMT2158X HMI with 15" VA LCD Display Resistive Touch Screen Dual Ethernet ports Quad-core 32bit 1.6GHz
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Panel, Wall VESA 75
Protection Level of Chassis
IP66
Display
Display Type
LCD VA
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
Memory
Default on Board Memory
1 GB
Installed drive
Flash Memory Capacity
4 MB
Ethernet
Total Ethernet
2
10/100 Mbit/s
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
2
USB Total
1
Software
Development Software
EasyBuilder Pro
System Power Input
Input Voltage DC
24..24 V
Dimensions and weight
Width
366 mm
Depth
48.2 mm
Height
293 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
2.6 kg
Gross Weight
3.28 kg
