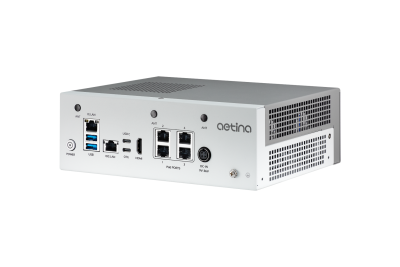

AIE-KX21-1-A2

AIE-KX21-1-A2

AETINA
SKU: 80241700
Embedded Edge AI Box PC, NVIDIA Jetson AGX Orin 12-Core SoC, NVIDIA Ampere GPU, 64GB LPDDR5 RAM, 64GB eMMC, HDMI, 1x10GbE LAN, 1xGbE LAN, 2xPoE LAN, 2xUSB 3.2, 1xUSB-C 3.2, 1xUSB-C OTG, 2xCOM, 2xCAN, 2xDB15, 3xM.2 (Key-M/Key-B/Key-E), 9-36VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Type
Fans
CPU
Processor Installed
Nvidia Jetson AGX Orin (12-Core)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR5
Default on Board Memory
64 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 2048-cores, 64 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
1
10 Gbit/s
1
PoE 10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
1
USB Total
5
USB 2.0
1
USB v3.x
4
Digital Input-Output
GPIO
Yes
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
MicroSD
1
Installed drive
Drive Type
Flash
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
SIM Card slots
Yes, 1, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 4xRJ45 Ethernet, 2xUSB, 4-pin DC input, 2xDB9 CAN, 2xUSB type C, 2xDB15 Multi-port
System Power Input
Input Voltage DC
9 V
Power Consumption
150 W
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, NVIDIA Jetpack
Dimensions and weight
Width
220 mm
Height
75 mm
Depth
195 mm
Operating Conditions
Operating Temperature
-25..70 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 ms duration
Standards and Certifications
Certifications
CE, FCC Class A
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
1.85 kg
Gross Weight
2.45 kg

Documentation
AIE-KX21-AIE-KX22-Datasheet.pdf
