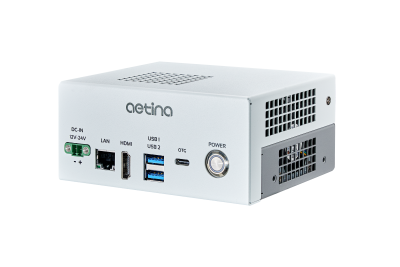

AIE-KO21-1-S1
AETINA
SKU: 80241000
Embedded Edge AI Box PC, NVIDIA Jetson Orin Nano (Super) 6-Core SoC, Ampere 512-Core GPU, 4GB LPDDR5 RAM, 128GB M.2 SSD, HDMI, 1xGbE LAN, 2xUSB 3.2, 1xUSB Type-C OTG, 1xCOM, 1xCAN, 1xDB15 Multiport (5-bit GPIO, I2C, UART), 1xM.2 Key-E, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fans
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.7 GHz
Memory
Form-factor
DDR5
Default on Board Memory
4 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 512-cores, 16 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
1
Interfaces
USB Total
3
USB v3.x
3
Digital Input-Output
GPIO
Yes
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
128 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2230 E
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
DB9, HDMI, RJ45 Ethernet, 2xUSB, USB type C, DB15 Multi-port, DB9 CAN
System Power Input
Input Voltage DC
12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 20.04
Dimensions and weight
Width
123 mm
Height
56 mm
Depth
99 mm
Operating Conditions
Operating Temperature
-25..70 °C
Vibration
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock
10 G, IEC 60068-2-27, half sine, 11 msduration
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
0.54 kg
Gross Weight
0.95 kg
