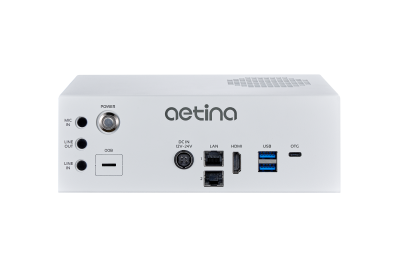

AIE-KN42-1-A1

AIE-KN42-1-A1

AETINA
SKU: 11642500
Orin NX 16GB, 1 x HDMI, 2 x GbE, 2 x USB, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25C to +70C
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Memory
Form-factor
DDR5
Default on Board Memory
16 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-422/485
1
USB Total
3
USB v3.x
3
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
1st Storage Capacity
128 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B, 3042 B
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 3xUSB, Mic In, Line Out
System Power Input
Input Voltage DC
12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
196.5 mm
Height
124 mm
Depth
68 mm
Operating Conditions
Operating Temperature
-25..55 °C
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg

Documentation
Aetina_AIE-KO22_32_KN32_42_datasheet.pdf
