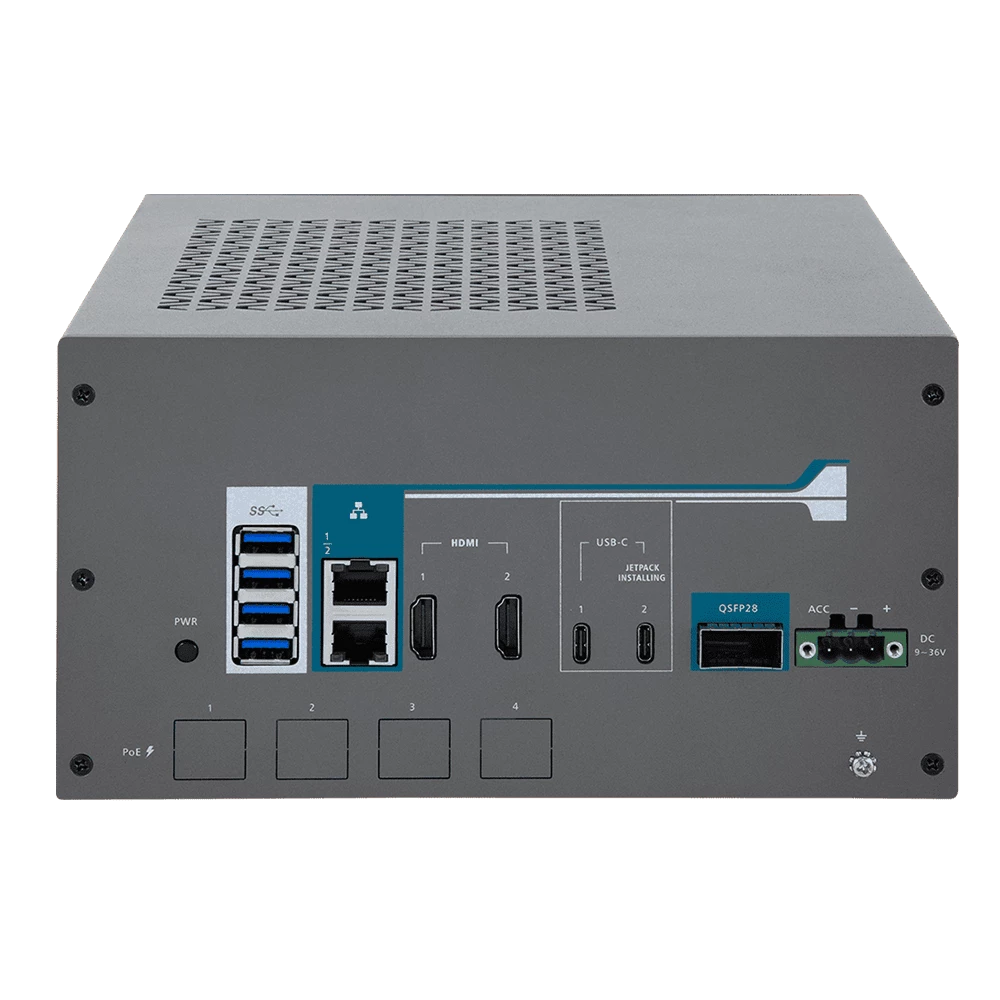

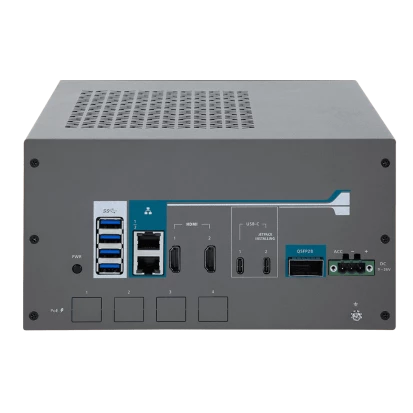

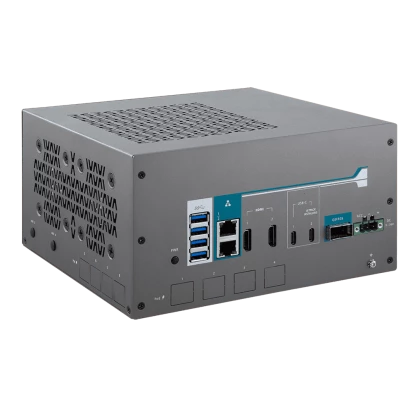

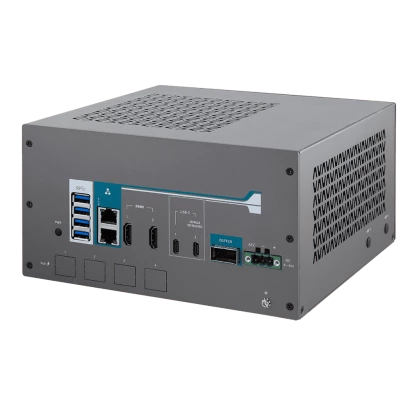

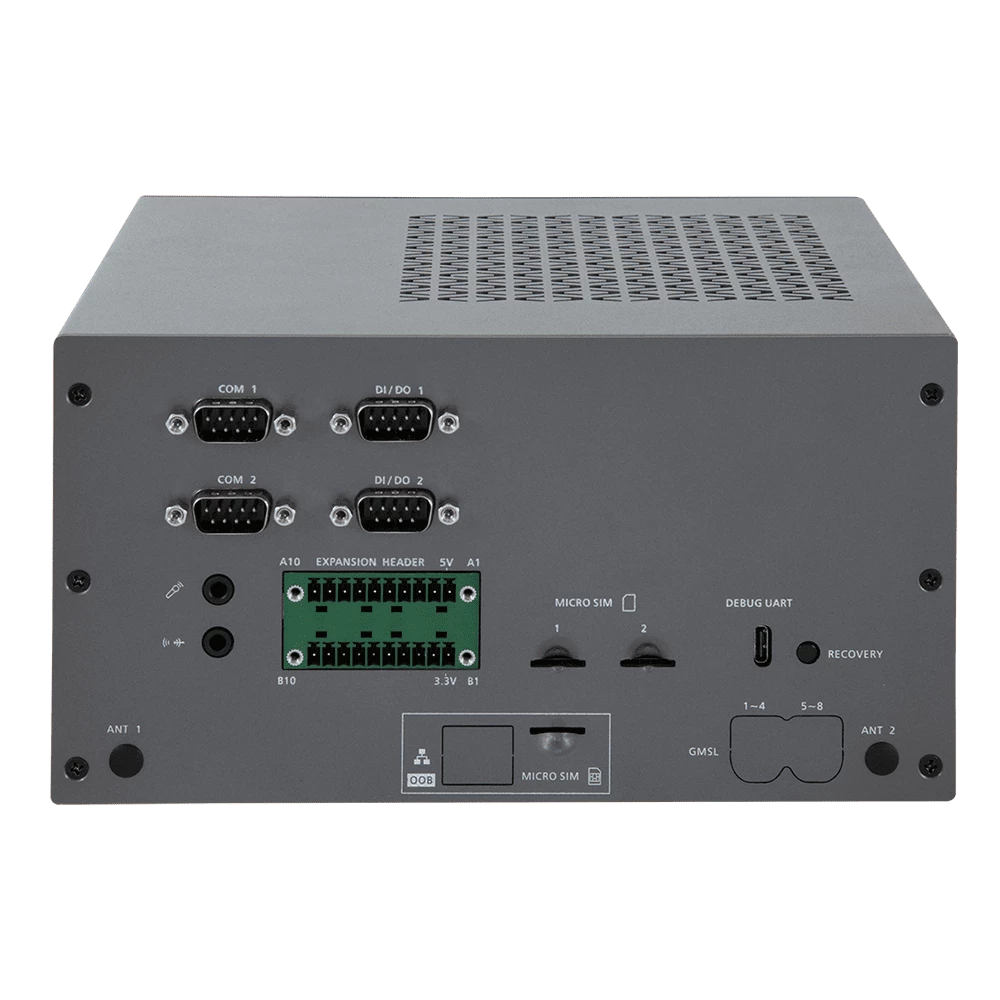

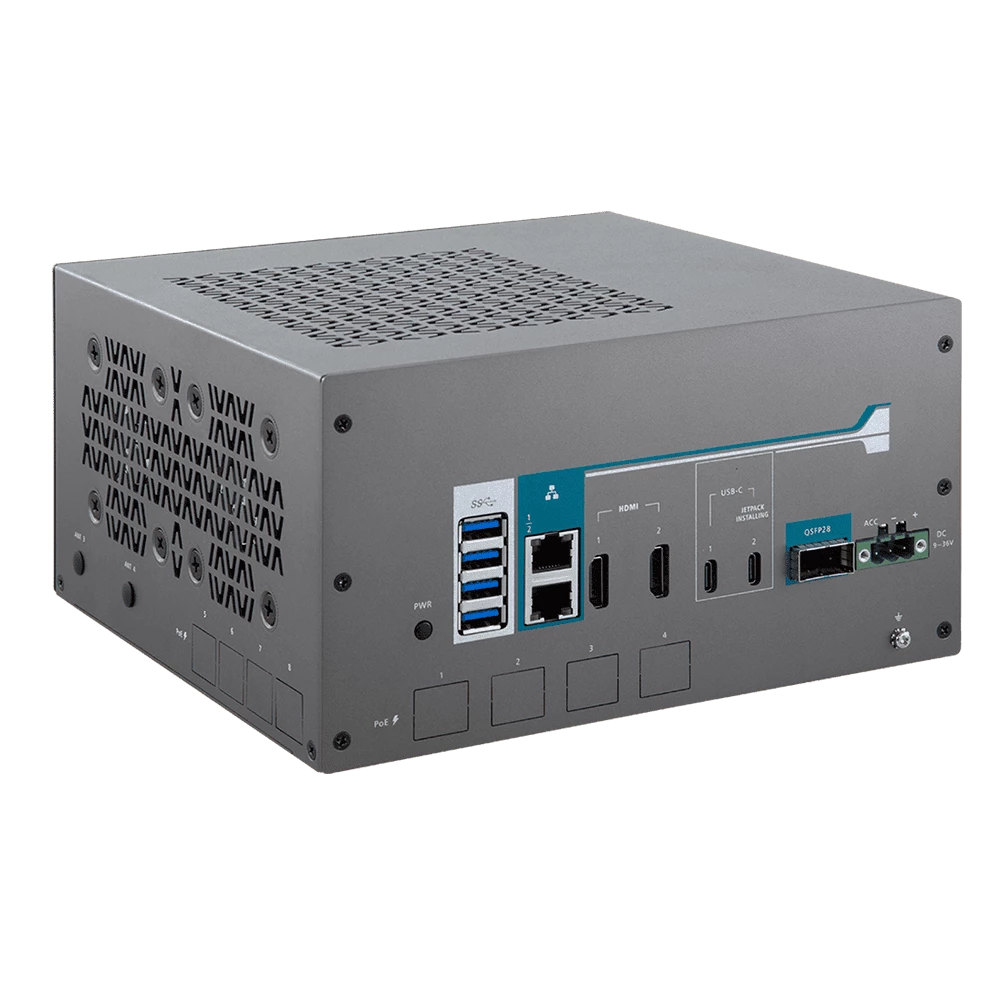

AEC-8400-BTO
Arbor
SKU: 80277400
Embedded Edge AI System, NVIDIA Jetson Thor T5000 CPU, 128GB LPDDR5x RAM, Blackwell 2650-Core GPU, 2xHDMI, 2xGbE LAN, 8xPoE, 1x100GbE QSFP, 4xUSB 3.2, 2xUSB-C 3.2, 2xCOM, 4xCAN, 16-bit GPIO, 8xGMSL, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Type
Fans
CPU
Processor Installed
Nvidia Jetson T5000
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
Yes
Default on Board Memory
128 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Blackwell, 2560-cores, 96 Tensor Cores
Interfaces
2xHDMI
Ethernet
Total Ethernet
11
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
6
USB v3.x
6
Digital Input-Output
Channels of DIO
16
Industrial Interfaces
CAN Port
4
Drive interfaces
M.2
2
Extension Slots
Total
4
M.2
4
M.2 Form Factor
3042 M, 2280 M, 2230 E, 3052 B
SIM Card slots
Yes, 2, Micro-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, 2xHDMI, 4xUSB, Mic In, Line Out, DC input (terminal block), DB9 DIO, 2xSIM Card Slot, 10xRJ45 Ethernet, 2xCAN (terminal block), 1xSFP, 3xUSB type C
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu, NVIDIA Jetpack
Dimensions and weight
Width
211 mm
Height
111 mm
Depth
194 mm
Operating Conditions
Operating Temperature
-25..50 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC, EN50155/50121
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810H Test Method 516.8 Shock
Dimensions
Net Weight
4 kg
Gross Weight
5.2 kg
