AEC-2001-08

AEC-2001-08

Arbor
SKU: 80219300

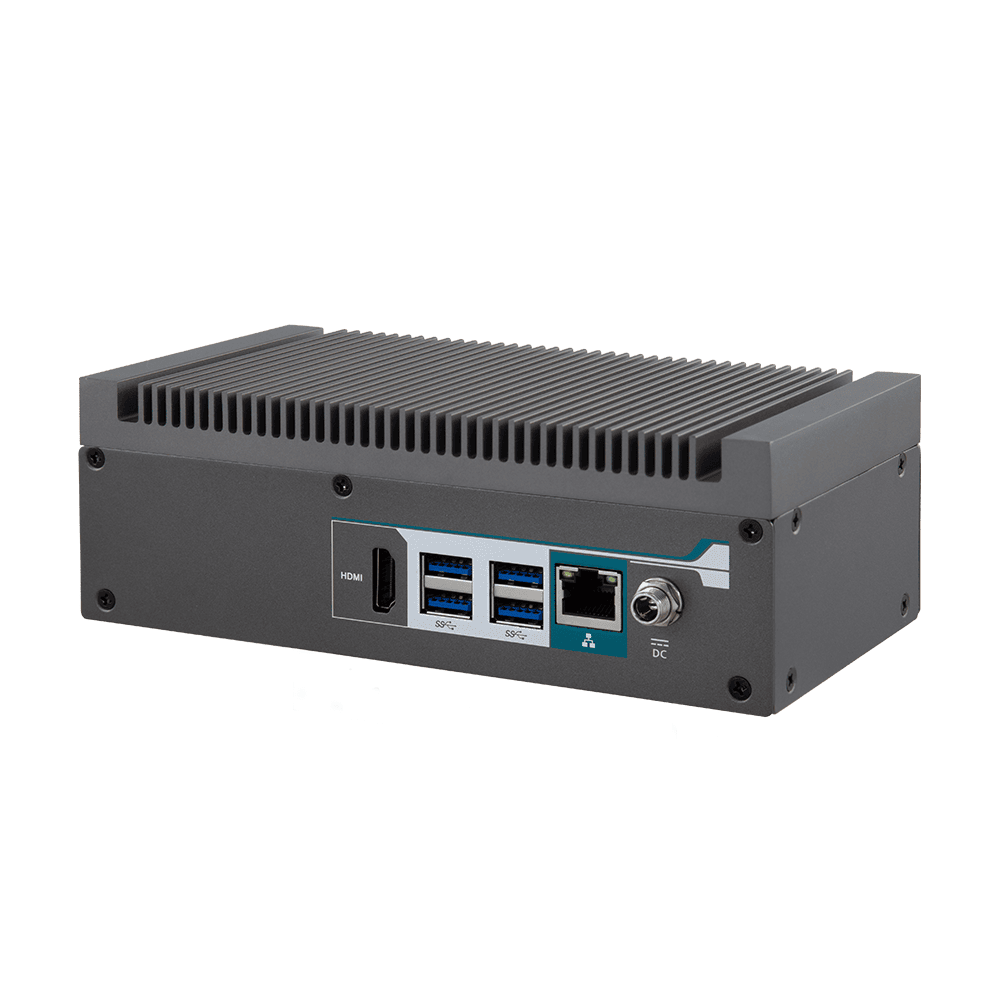

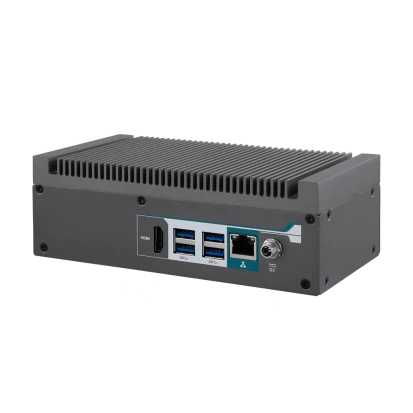

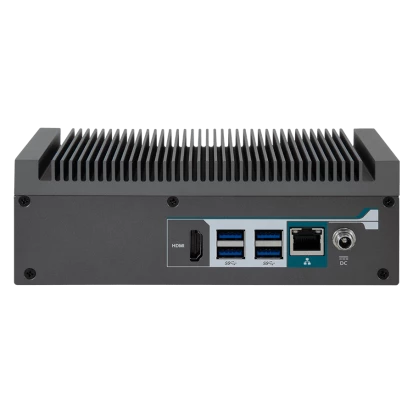

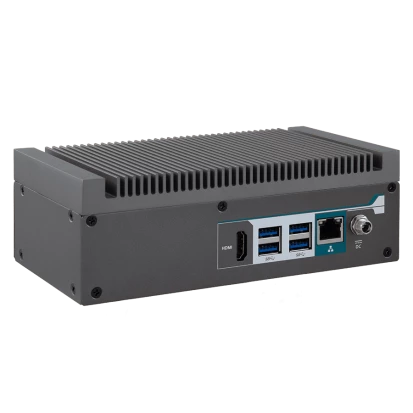

Fanless Edge AI Box PC, NVIDIA Jetson Orin Nano 6-Core SoC, 8GB LPDDR5 RAM, NVIDIA Ampere 1024-Core GPU, 256GB NVME SSD, HDMI, 1xGbE LAN, 4xUSB 3.2, 1xUSB Type-C 2.0, 1xCAN 2.0, 1xM.2 Key-E, 9-24VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
Processor Installed
Nvidia Jetson Orin Nano (6-Core)
Socket
CPU onboard
Max CPU frequency
1.5 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
5
USB 2.0
1
USB v3.x
4
Industrial Interfaces
CAN Port
1
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
256 GB
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2280 M, 2230 E
LED / Controls
Controls
On/Off, 1xReset
Connectors
Connectors
HDMI, RJ45 Ethernet, 4xUSB, DC Input, CAN (terminal block), USB type C
System Power Input
Input Voltage DC
9..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Ubuntu 22.04
Operating System Installed
NVIDIA Jetpack 6.2
Dimensions and weight
Width
180 mm
Height
60.9 mm
Depth
96 mm
Operating Conditions
Operating Temperature
-20..65 °C
Humidity
5-95%
Dimensions
Net Weight
1.25 kg
Gross Weight
2 kg

Documentation
AEC-2001-08-Datasheet.pdf
