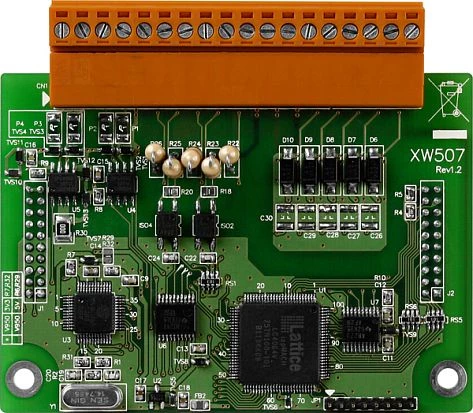

XW507

XW507

ICP DAS
SKU: 07086900
1-port Non-Isolated RS-422/485 with 5-ch Isolated Digital Input and 5-ch Isolated Digital Output (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Interfaces
COM Total
1
RS-422/485
1
Digital Input
Total channels of digital input
5
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Isolation of Digital Input
3750 V
Digital Output
Total channels of digital output
5
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions and weight
Width
66 mm
Depth
82 mm
Height
17 mm
Dimensions
Gross Weight
0.1 kg
