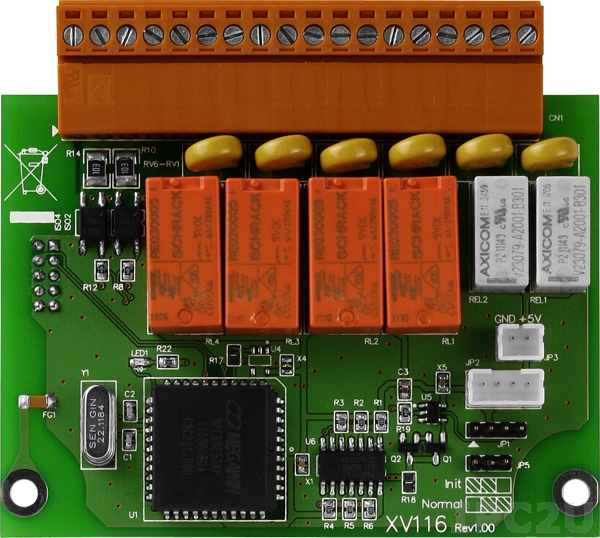

XV116

XV116

ICP DAS
SKU: 66347100
5-channel Isolated Digital Input and 6-channel Relay Output Module with 16-bit Counters (RoHS) only for VPD-132/133
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Digital Input
Total channels of digital input
5
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Sink, Source
Counter
100Hz, 16 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
6A@240V AC, 6A@35V DC
Dimensions and weight
Width
59 mm
Depth
13 mm
Height
82 mm
Dimensions
Gross Weight
0.1 kg

Documentation
Datasheet XV116
