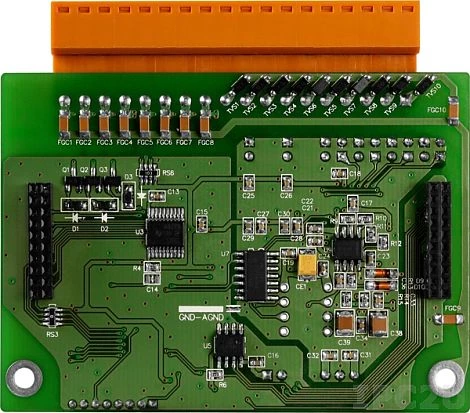

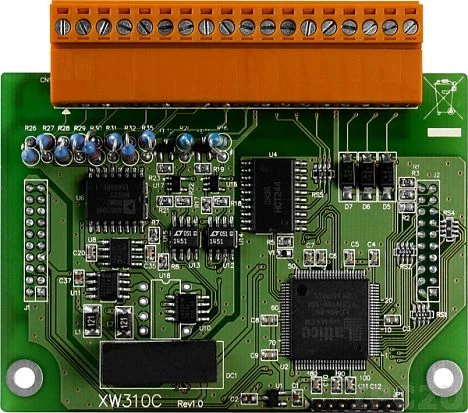

XW310C
ICP DAS
SKU: 66258400
4-channel Differential/8-channel Single-Ended A/D (0...20 mA), 2-channel D/A (0...20 mA), 3-channel D/O, 3-channel D/I (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
8
Number of Bits
12 Bit
Current range
0...20 mA
Sampling rate
4 Hz
Single-Ended channels
8
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Current range
0...20 mA
Digital Input
Total channels of digital input
3
Type
Dry contact
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions and weight
Width
66 mm
Depth
17 mm
Height
82 mm
Dimensions
Net Weight
0.08 kg
Gross Weight
0.08 kg
