XV315
ICP DAS
SKU: 11631700

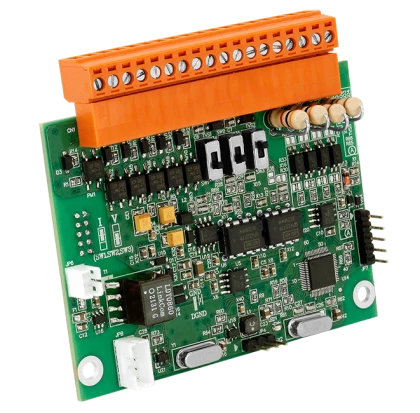

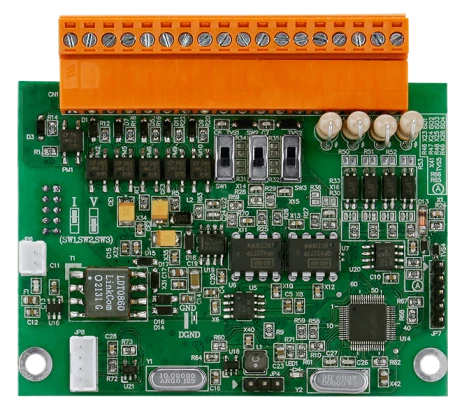

3-ch RTD Input, 3-ch AO and 4-ch DI(Wet) Expansion Board, 5VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
3
Number of Bits
16 Bit
Sampling rate
10 Hz
Thermal resistance
Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000
Analog Output
Channels of analog input
3
DAC Bit Rate
12 Bit
Voltage range
0...10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~30 V
Sink/Source
Wet: Sink/Source
Counter capacity
32 Bit
Max frequency
3 kHz
System Power Input
Input Voltage DC
5..5 V
Dimensions and weight
Width
59 mm
Depth
82 mm
Height
13 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.09 kg
Gross Weight
0.1 kg
