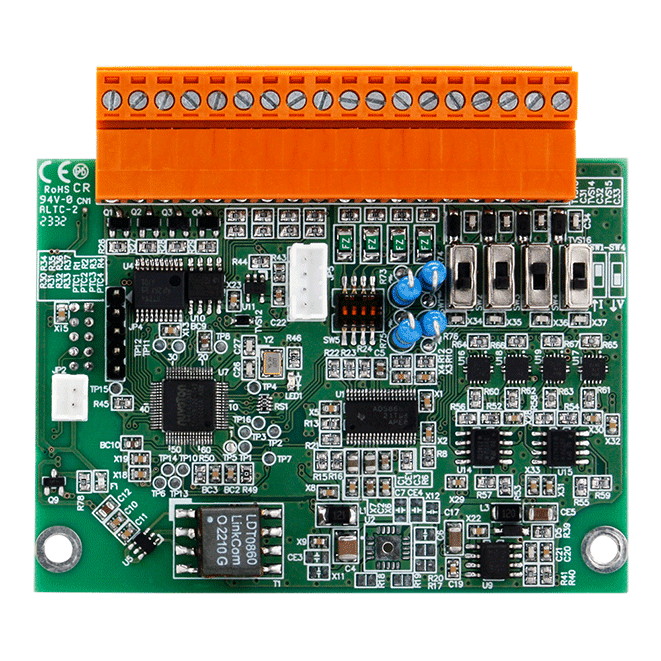

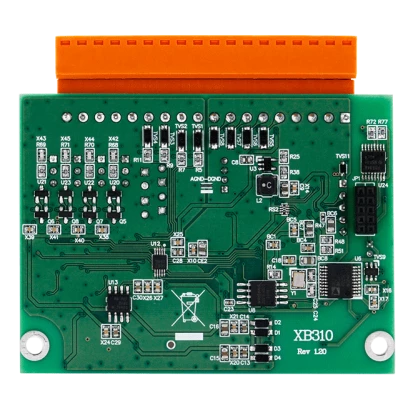

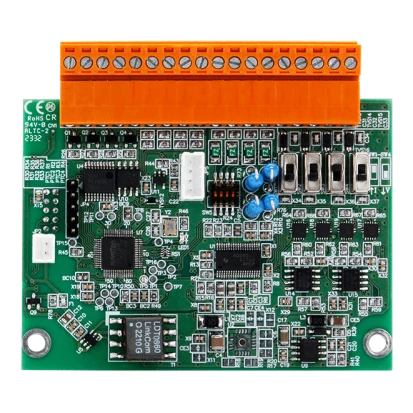

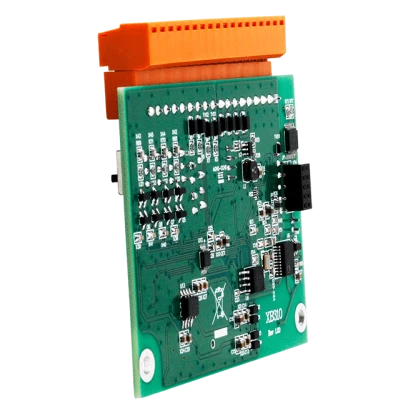

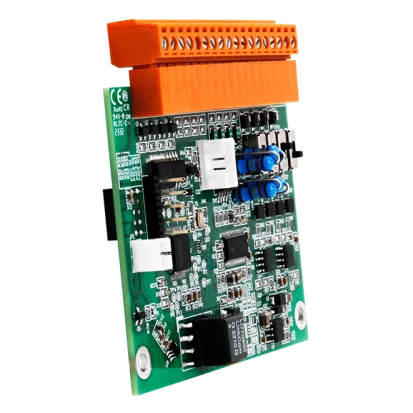

XB310
ICP DAS
SKU: 80127000
4xAI, 4xAO, 4xDI, 4xDO Expansion Boar, USB, 5 VDC, Operating Temperature -25..75 C
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
16 Bit
Voltage range
+/-2.5 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
125000 Hz
Analog Output
Channels of analog input
4
DAC Bit Rate
12 Bit
Voltage range
0...10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
4
Type
Dry contact
Counter capacity
32 Bit
Max frequency
0.05 kHz
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
3.5~50 V
Max. load current
700 mA
Dimensions and weight
Width
59 mm
Depth
13 mm
Height
82 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, rohs
EMS
EN 61000-4-2
Dimensions
Net Weight
0.05 kg
Gross Weight
0.1 kg
Construction
