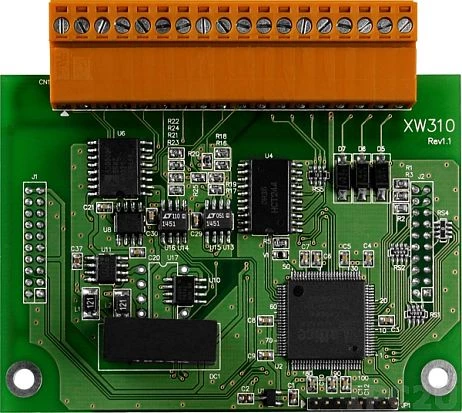

XW310

XW310

ICP DAS
SKU: 66258300
4-channel A/D (+/- 10 V), 2-channel D/A (+/- 10 V), 3-channel D/O, 3-channel D/I (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
+/-10 V
Sampling rate
4 Hz
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
+/-10 V
Digital Input
Total channels of digital input
3
Type
Dry contact
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
+/-10 V
Sampling rate
4 Hz
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
+/-10 V
Digital Input
Total channels of digital input
3
Type
Dry contact
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
+/-10 V
Sampling rate
4 Hz
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
+/-10 V
Digital Input
Total channels of digital input
3
Type
Dry contact
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions
Gross Weight
0.1 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
4
Number of Bits
12 Bit
Voltage range
+/-10 V
Sampling rate
4 Hz
Differential channels
4
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Voltage range
+/-10 V
Digital Input
Total channels of digital input
3
Type
Dry contact
Digital Output
Total channels of digital output
3
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions
Gross Weight
0.1 kg
Documentation
datasheet datasheet-xw107_cr
Documentation
datasheet datasheet-xw107_cr
Documentation
datasheet datasheet-xw107_cr
Documentation
datasheet datasheet-xw107_cr
