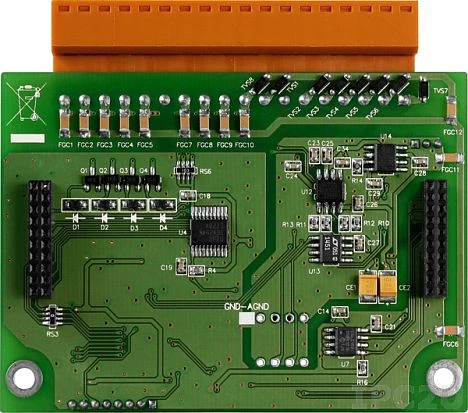

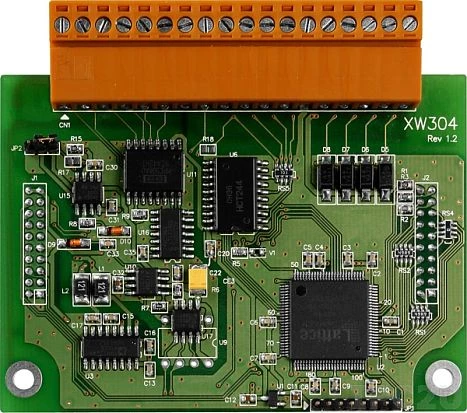

XW304

XW304

ICP DAS
SKU: 66241600
6-channel A/D (+/- 5 V or 0 ... 5 V), 1-channel D/A (+/- 5 V), 4-channel D/O, 4-channel D/I (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
6
Number of Bits
12 Bit
Voltage range
+/-5 V, 0...5 V
Sampling rate
4 Hz
Single-Ended channels
8
Analog Output
Channels of analog input
1
DAC Bit Rate
12 Bit
Voltage range
+/-5 V
Digital Input
Total channels of digital input
4
Type
Dry contact
Digital Output
Total channels of digital output
4
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions and weight
Width
66 mm
Depth
17 mm
Height
82 mm
Dimensions
Gross Weight
0.8 kg
