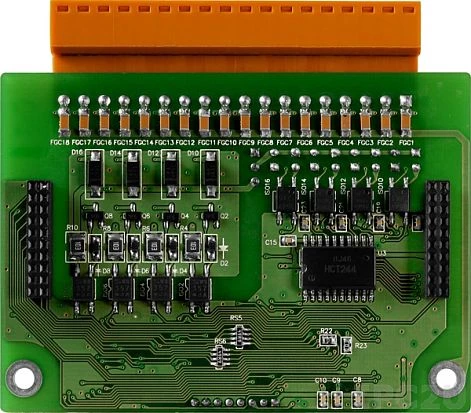

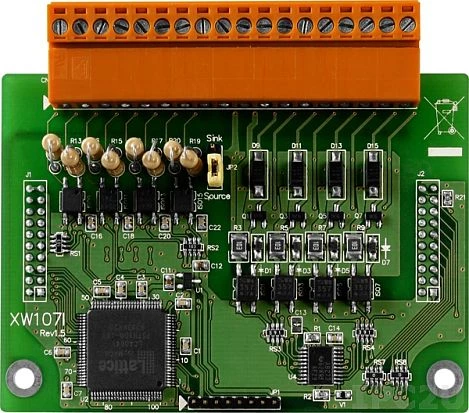

XW107i

XW107i

ICP DAS
SKU: 05936100
8-channel Isolation Digital Input and 8-channel Isolation Digital Output Module, RoHS
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Digital Input
Total channels of digital input
8
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
8
Type
Open collector
Sink/Source
Sink
Output voltage
10~40 V
Max. load current
200 mA
Dimensions and weight
Width
66 mm
Depth
17 mm
Height
82 mm
Dimensions
Net Weight
0.08 kg
Gross Weight
0.08 kg
