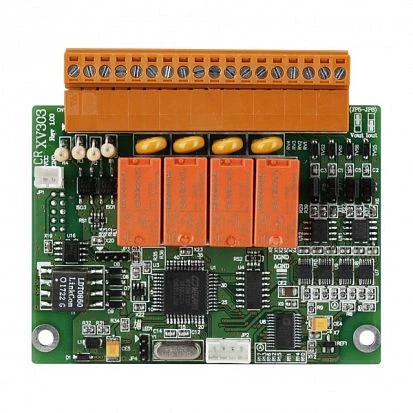

XV303
ICP DAS
SKU: 08018900
Multifunction Expansion Board, 4-channel Analog Output, 4-channel Digital Input, 4-channel Relay Output Board (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Output
Channels of analog input
4
DAC Bit Rate
12 Bit
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Current range
0...20 mA, 4...20 mA
Digital Input
Total channels of digital input
4
Type
Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
3.5~50 V
Sink/Source
Wet: Sink/Source
Counter
500Hz, 32 bit
Digital Output
Total channels of digital output
4
Type
Electromagnitic relay
Relay (Form A)
4
Contact rating of relay (Form A)
6A@240V AC, 6A@35V DC
System Power Input
Input Voltage DC
5..5 V
Dimensions and weight
Width
59 mm
Depth
13 mm
Height
82 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.02 kg
Gross Weight
0.05 kg
