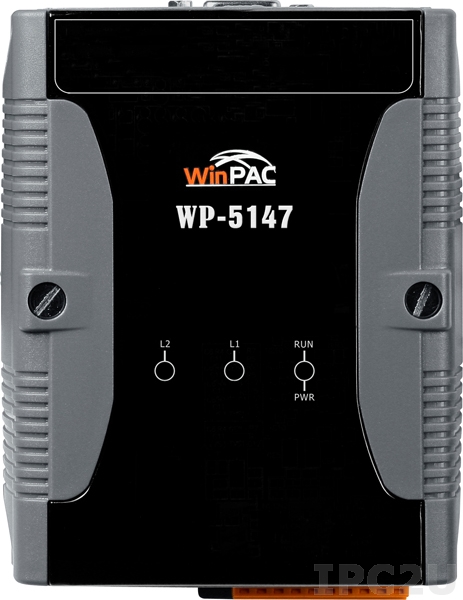

WP-5147-EN
ICP DAS
SKU: 06093700
PC-compatible PXA270 520MHz Industrial Controller, 64Mb Flash, 128Mb SRAM, VGA, 2xRS-232, 1xRS-485, 2xEthernet, Windows CE 5.0, with 4 Expansion Slots, support ISaGRAF
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
Intel PXA270
Max CPU frequency
0.52 GHz
Memory
Default on Board Memory
0.13 GB
Installed drive
Flash Memory Capacity
64 MB
EEPROM Memory Capacity
16 kB
1st Storage Capacity
2 GB
Drive interfaces
MicroSD
1
MicroSDHC
1
Expansion Module
Quantity of Slots
1
Supported Module
XW - board
Software
Operating System Installed
Windows CE 5.0
Programming Method
C/C++, IEC 61131-3
Development Software
Embedded Visual C++, Visual Studio .NET, ISaGRAF
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
1
Additional Functions
Watchdog timer type
Hardware, Software
Graphic
Interfaces
VGA
Dimensions and weight
Width
91 mm
Depth
132 mm
Height
52 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Gross Weight
1 kg
