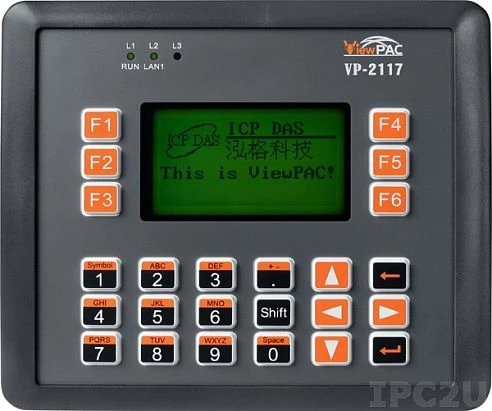

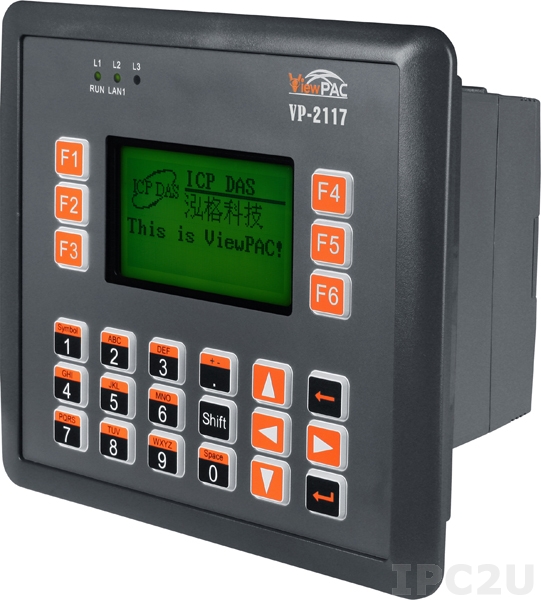

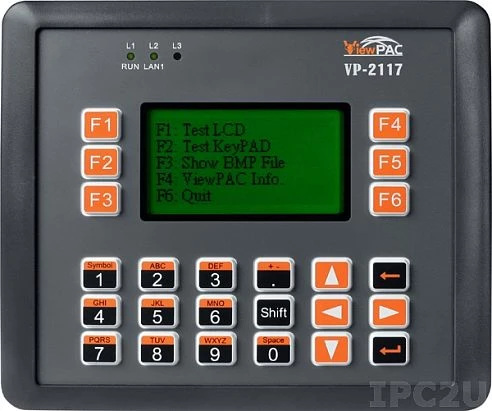

VP-2117

VP-2117

ICP DAS
SKU: 05646500
VIEW PAC+128*64 dots LCM with Mini OS 7, 186 80Mhz CPU, IsaGraf
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel
Display
Display Type
STN Dot Matrix LCD
Maximum resolution
128x64 Dots
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Built-in NAND Flash Capacity
64 MB
Expansion Module
Quantity of Slots
3
Supported Module
I-8K series, I-87K series
Software
Operating System Installed
Mini OS7
Programming Method
C/C++, IEC 61131-3
Development Software
MiniOS7 Studio, ISaGRAF
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
3
RS-232
1
RS-485
1
RS-232/485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
182 mm
Depth
125 mm
Height
158 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-15..55 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
