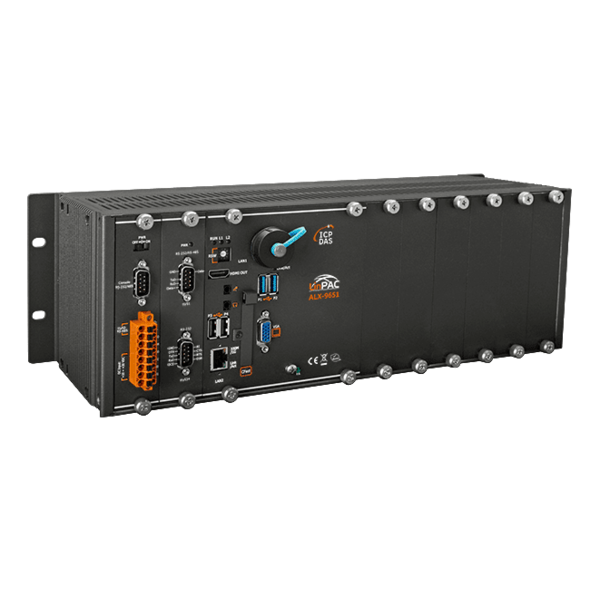

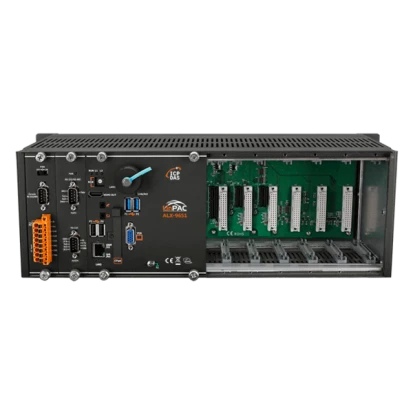

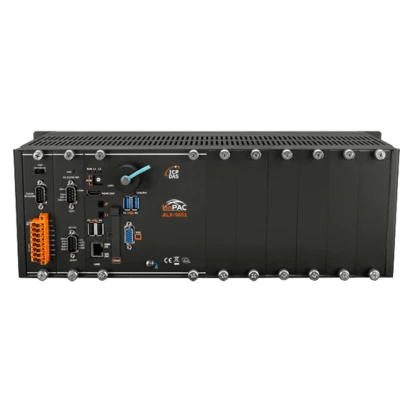

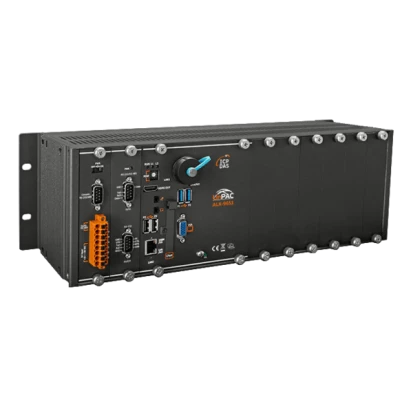

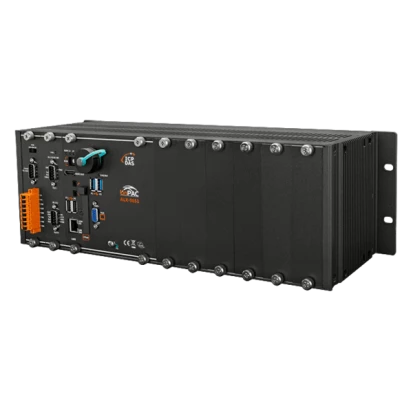

ALX-9651
ICP DAS
SKU: 80221000
Linux Based Metal PAC, 6xSerial/parallel bus, Intel i5-8365UE, 16GB DDR4, 128GB SSD, CFast, VGA, HDMI, 1xRS-232, 1xRS-485, 2xRS-232/485, 4xUSB, 2x10/100/1000Base-TX, HMI, Ubuntu 24.04 Linux kernel 6.9, 19..30VDC-in, Operating Temperature -25..60 C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
CPU
Processor Installed
Intel Core i5-8365UE
Max CPU frequency
4.1 GHz
Memory
Default on Board Memory
16 GB
Installed drive
Flash Memory Capacity
128000 MB
MRAM Memory Capacity
128 kB
Drive Type
SSD
Software
Operating System Installed
Linux OS
Programming Method
C/C++, Python, Java
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
1
RS-485
1
RS-232/485
2
USB Total
4
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
DB15 VGA, HDMI, Audio
Dimensions and weight
Width
233 mm
Depth
164 mm
Height
133 mm
System Power Input
Input Voltage DC
19..30 V
Operating Conditions
Operating Temperature
-25..60 °C
Humidity
10-90%
Dimensions
Net Weight
5 kg
Gross Weight
6 kg
Construction
