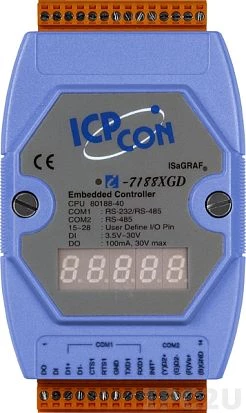

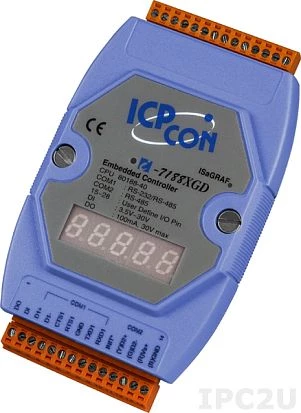

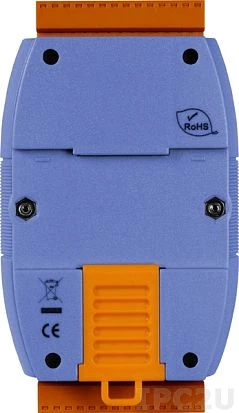

I-7188XGD
ICP DAS
SKU: 01544800
PC-compatible 40MHz Industrial Controller, 512kb Flash, 512kb SRAM, I/O Expansion Bus, 2xDI/2xDO, 2xRS232, 1xRS485, 1xRS232/485, 7-Segment Display, ISaGRAF, cable CA-0910x1
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Display
Display Type
LED Character
CPU
Processor Installed
80188
Max CPU frequency
0.04 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
2 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
1
Supported Module
X - board
Software
Programming Method
IEC 61131-3
Development Software
ISaGRAF
Digital Input
Total channels of digital input
1
Type
Dry contact
Digital Output
Total channels of digital output
1
Type
Open collector
Max. load current
100 mA
Output voltage
1~30 V
Interfaces
COM Total
2
RS-485
1
RS-232/485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
72 mm
Depth
123 mm
Height
33 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
