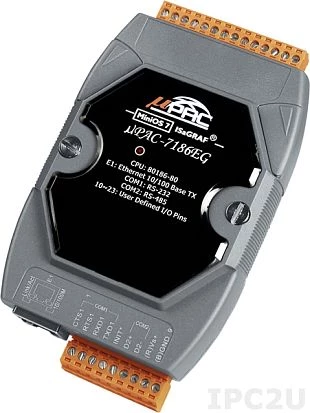

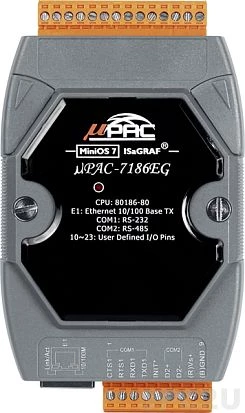

uPAC-7186EG

uPAC-7186EG

ICP DAS
SKU: 03882700
PC-compatible 80MHz Industrial Controller, 512kb Flash, 640kb SRAM, 2xRS232/485, Ethernet, MiniOS7, IsaGRAF
Price on request
Available
Available
Software
Price with VAT
Price on request
Price on request
Software
Price with VAT
Price on request
Price on request
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Memory
SRAM
640 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
1
Supported Module
X - board
Software
Programming Method
IEC 61131-3
Development Software
ISaGRAF
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
72 mm
Depth
123 mm
Height
35 mm
System Power Input
Input Voltage DC
