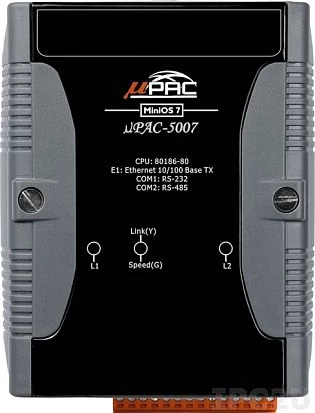

uPAC-5007

uPAC-5007

ICP DAS
SKU: 06549200
PC-compatible 80MHz Industrial Controller,512KB Flash, 768KB SRAM, 16KB EEPROM, 31B NVRAM, microSD, 1xRS232, 1xRS485, 1xFastLAN, 12-48 VDC, ISaGRAF
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Drive interfaces
MicroSD
1
Expansion Module
Quantity of Slots
1
Supported Module
XW - board
Software
Operating System Installed
Mini OS7
Programming Method
C/C++, IEC 61131-3
Development Software
MiniOS7 Studio, ISaGRAF
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
91 mm
Depth
123 mm
Height
52 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
