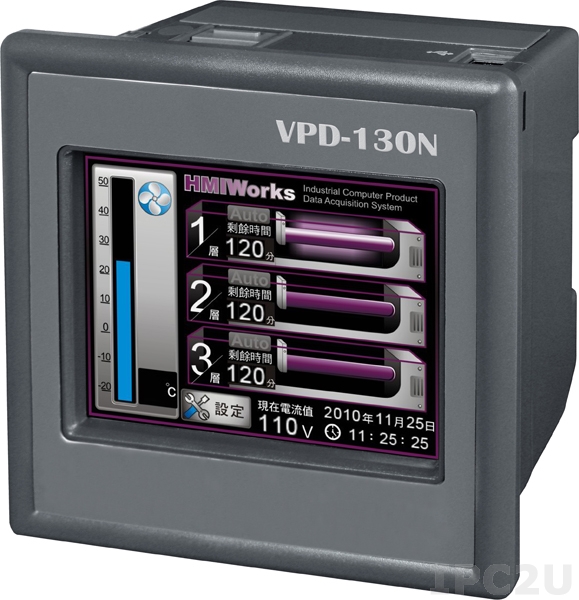

VPD-130N
ICP DAS
SKU: 05826700
3.5" touch HMI device with RS-232/RS-485, USB, RTC, Rubber Keypad
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Panel, Wall
Protection Level of Chassis
IP65
Display
Display Type
LCD TFT
Diagonal
3.5 "
Maximum resolution
240x320 Dots
Brightness
270 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
8 MB
Interfaces
RS-232/485
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
103 mm
Depth
53 mm
Height
103 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Documentation
Software
