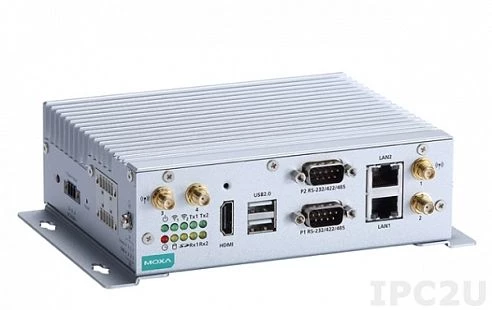

V2201-E1-T-W7E
MOXA
SKU: 06922800
x86 ready-to-run embedded computer with Intel Atom 3815 1.46GHz, 4GB DDR3L RAM, HDMI, 2xGB LAN, 2xCOM, USB 3.0, Audio, 4DI/4DO, SD slot, 2xMini-PCIe, WES7, -40...85C operating temperature
Price on request
Available
Available
Construction
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Type
Fanless
CPU
Max CPU frequency
1.46 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
ECC
No
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB 2.0
2
USB v3.x
1
Drive interfaces
mSATA
1
SD Slots
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
1, Micro-SIM
Antenna characteristics
Cellular interfaces
3G
Additional Functions
GPS
GPS
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 3xUSB, DC Input, SMA Female, 2xDB9 Male, 10-pin connector
System Power Input
Input Voltage DC
9..36 V
Power Consumption
18 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Installed
Windows Embedded Standard 7
Dimensions and weight
Width
150 mm
Height
48.8 mm
Depth
120.2 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
5 Grms, 5 Hz to 500 Hz, 1 hr/axis w/ mSATA, SD
Shock
100 g/11ms ±X, ±Y, ±Z, 3 shocks each axis w/ mSATA, SD
Standards and Certifications
EMI
EN 55022 Class A, EN 61000-3-2, EN 61000-3-3
EMS
IEC 61000-6-2, EN 55024, EN 61000-6-4
Safety
CCC, UL 60950-1, UL 508, EN 60950-1, CSA C22.2 No. 60950-1-03
Dimensions
Net Weight
0.94 kg
Gross Weight
1.3 kg
