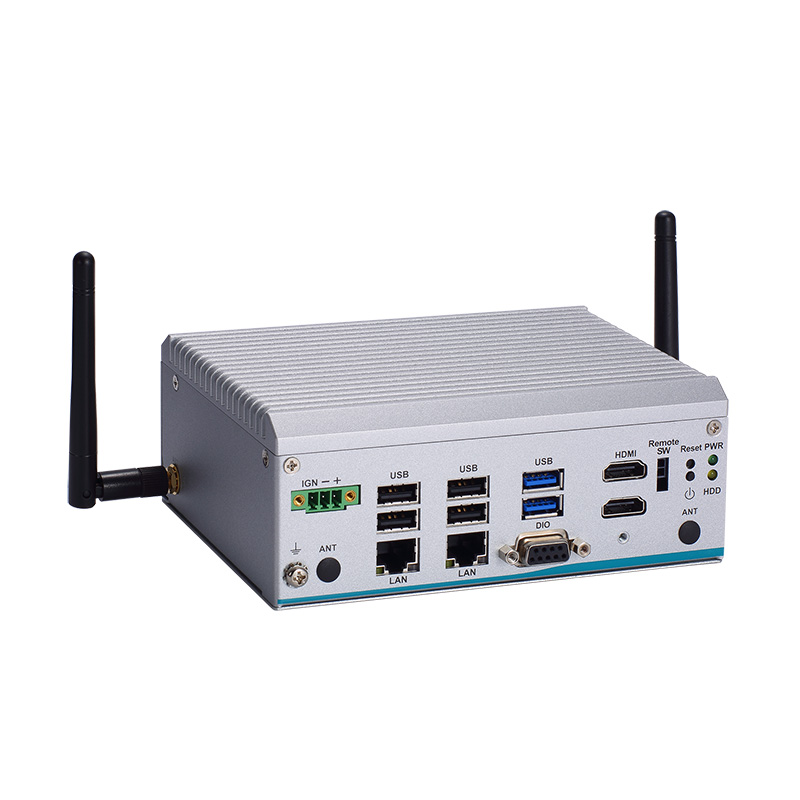

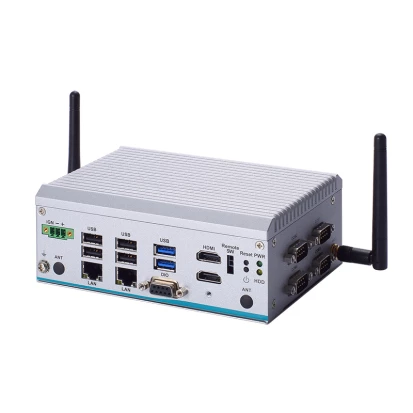

eBOX100B-N150-2E
AXIOMTEK
SKU: 80226600
Fanless Embedded Box PC, Intel Twin Lake N150 3.6GHz CPU, 8GB LPDDR5 RAM, 2xHDMI, 2x2.5GbE LAN, 2xUSB 3.2, 4xUSB 2.0, 4xCOM, 8-bit DIO, 2.5" Drive Bay, 1xMiniPCIe, 1xM.2 2280 Key-M, 1xM.2 2230 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Twin Lake
Processor Installed
Intel N150
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Memory
Form-factor
DDR5
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU
Interfaces
2xHDMI
Ethernet
Controller Type
Intel i226V
2,5 Gbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
6
USB 2.0
4
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
3
M.2
2
M.2 Form Factor
2280 M, 2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, DC input (terminal block), DB9 DIO
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
155 mm
Height
60 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
