eBOX-3362-852C2
ICOP
SKU: 07228100

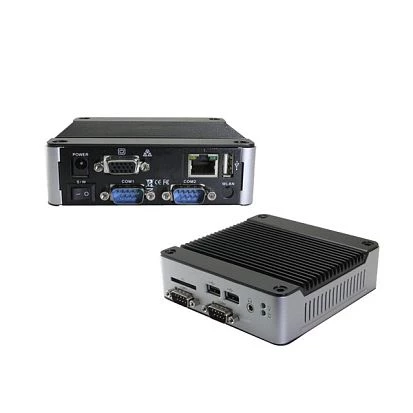

Compact fanless Embedded System with Vortex86DX3 1GHz, VGA, 2GB DDR3 RAM, 1xLAN, 2xRS-485, 2xRS-232, 4xUSB, SD/SDHC slot, 1x2.5" SATA/HDD drive bay, VESA mounting, 8-24V DC
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop, Wall VESA 100
Type
Fanless
CPU
Processor Installed
Vortex86DX3
Max CPU frequency
1 GHz
Chipset
Chipset
Vortex86 System-on-Chip
Memory
Form-factor
DDR3
Default on Board Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Integrated with Chipset
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-485
2
USB Total
4
USB 2.0
4
Drive interfaces
mSATA
1
SD Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Connectors
Connectors
4xDB9, DB15 VGA, RJ45 Ethernet, 3xUSB, Audio Out, DC Input, SD card slot
System Power Input
Input Voltage DC
8..24 V
Power Consumption
22.5 W
Dimensions and weight
Width
115 mm
Height
35 mm
Depth
115 mm
Operating Conditions
Operating Temperature
5..50 °C
Standards and Certifications
Certifications
CE, FCC, VCCI
Dimensions
Gross Weight
1.3 kg
