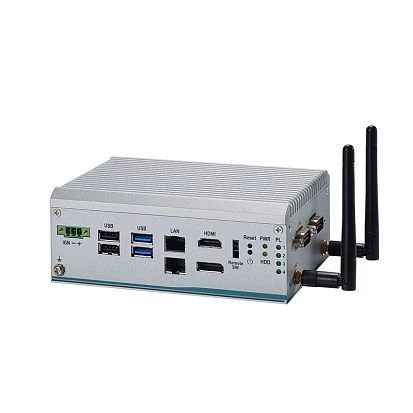

eBOX100A-N97-2E
AXIOMTEK
SKU: 11190500
Fanless embedded system with Intel N97, DDR5, HDMI, DisplayPort++, 2x2.5GbE LAN, 2xCOM, 2xUSB 3.2, 2xUSB 2.0, 2.5" SATA, PCIe Mini, M.2 Key M 2280, M.2 Key E 2230, SIM, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Max CPU frequency
3.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
Total
3
M.2
2
Mini-PCIe/Mini Card
1
Mini-PCI
1
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 2xRJ45, 4xUSB, Display Port, 2xCOM (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11
Dimensions and weight
Width
155 mm
Height
110 mm
Depth
60 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
