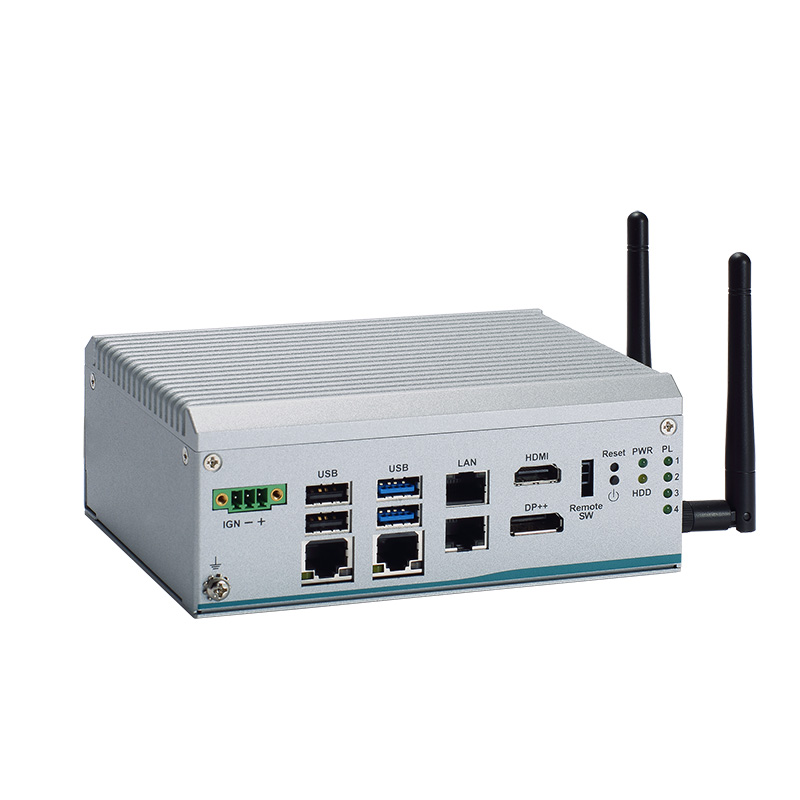

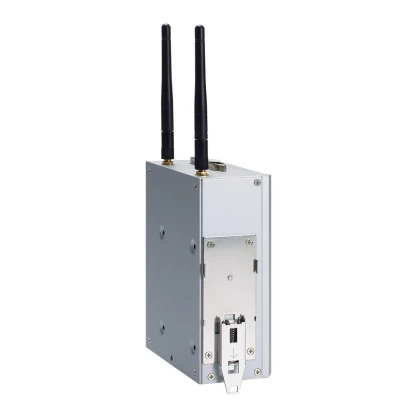

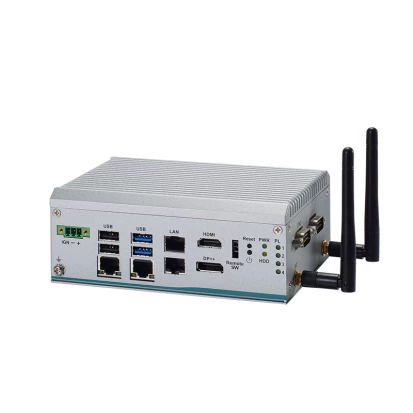

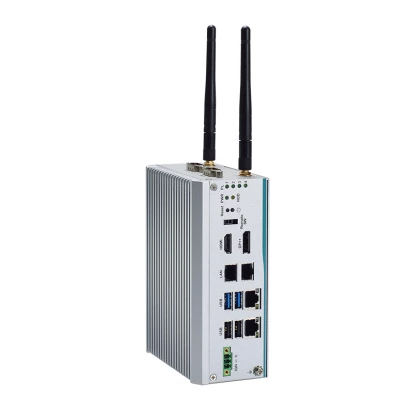

eBOX100A-N305-2E
AXIOMTEK
SKU: 80144900
Fanless Box-PC, Intel i3-N305 3.8GHz CPU, Up to 16GB DDR5 RAM, HDMI, DisplayPort++, 2x2.5GbE LAN, 2xUSB 3.2, 2xUSB 2.0, 2xCOM, 1x2.5" Drive Bay, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel Core i3-N305
Socket
FCBGA1264
Max CPU frequency
3.8 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i226V
Total Ethernet
2
2,5 Gbit/s
2
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
2
USB v3.x
2
Drive interfaces
SATA 3
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
M.2 Form Factor
2230 E
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 1
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
1xHDD LED, Power LED
Controls
On/Off, 1xReset
Connectors
Connectors
2xDB9, HDMI, 2xRJ45, 4xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
155 mm
Height
60 mm
Depth
110 mm
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, IEC 60945
Safety
UL 62368-1
Dimensions
Net Weight
1.1 kg
Gross Weight
1.5 kg
