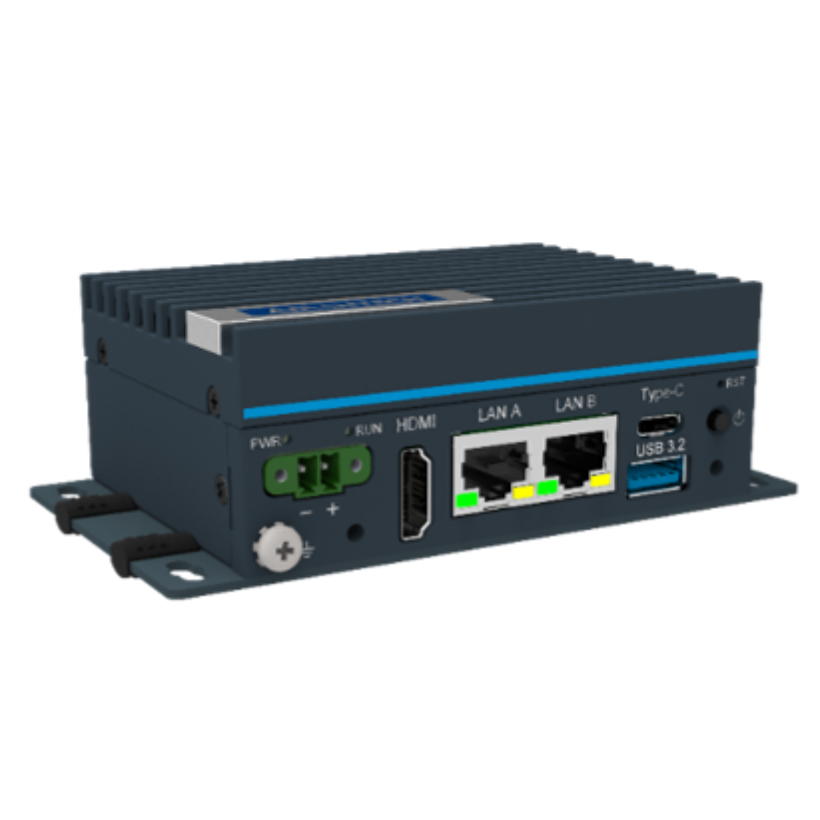

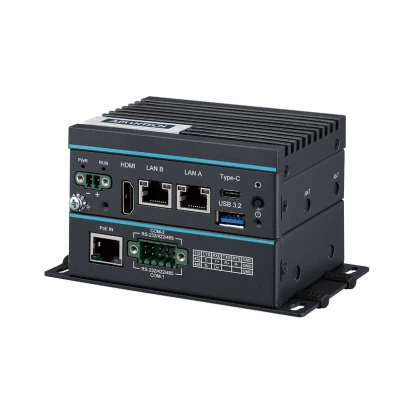

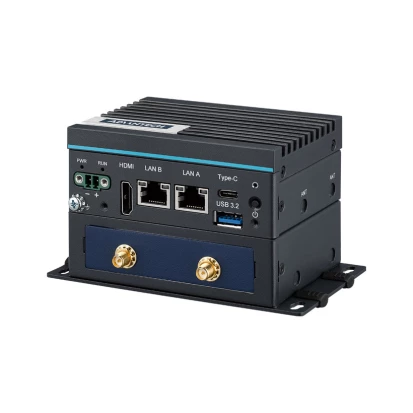

UNO-2271G-I331AE
Advantech
SKU: 11607700
Embedded Edge IoT Gateway, Intel Atom x7211RE 1.46GHz CPU, 8GB LPDDR5 RAM, 64GB eMMC, HDMI, 2x2.5GbE LAN, 1xUSB 3.2, 1xUSB Type-C DP-Alt., 1xM.2 Key-B, TPM 2.0, 10-30VDC-in, -20..60C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
Processor Installed
Intel Atom x7211RE
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel UHD Graphics
Interfaces
HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
USB Total
2
USB v3.x
2
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
64 GB
Extension Slots
Total
1
M.2
1
M.2 Form Factor
2242 B
Additional Functions
Watchdog timer type
Software
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
HDMI, 2xRJ45, 1xUSB, DC input (terminal block), USB type C
System Power Input
Input Voltage DC
10..30 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 11, Ubuntu 20.04
Dimensions and weight
Width
100 mm
Height
40 mm
Depth
70 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE/FCC
Safety
CCC, UL, BSMI
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.5 kg
Gross Weight
0.7 kg
