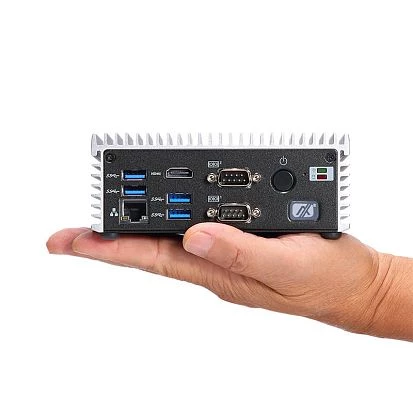

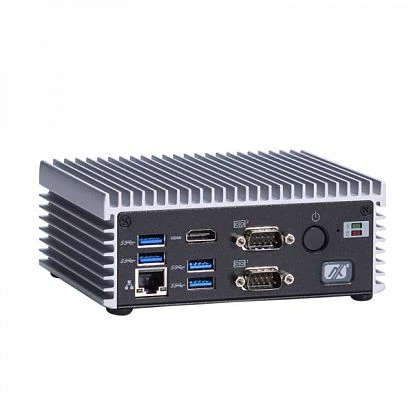

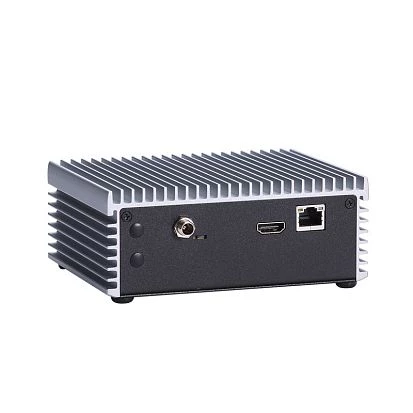

eBOX560-500-FL-DC-6100U
AXIOMTEK
SKU: 08993800
Fanless Embedded System with Intel Core i3-6100U 2.3GHz CPU, DDR4, 2xHDMI, 2x COM, 2x LAN, 4x USB 3.0, 1x 2.5" SATA HDD bay, 1x mSATA, 1x Mini-PCIe, PWR IN 12VDC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Embedded, Desktop, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Skylake
Processor Installed
Intel Core i3-6100U
Max CPU frequency
2.3 GHz
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xDB9, 2xHDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 8, Linux OS, Windows 10
Dimensions and weight
Width
141.6 mm
Height
73 mm
Depth
106 mm
Operating Conditions
Operating Temperature
-10..50 °C
Standards and Certifications
Certifications
CE
Dimensions
Net Weight
1.52 kg
Gross Weight
1.52 kg
