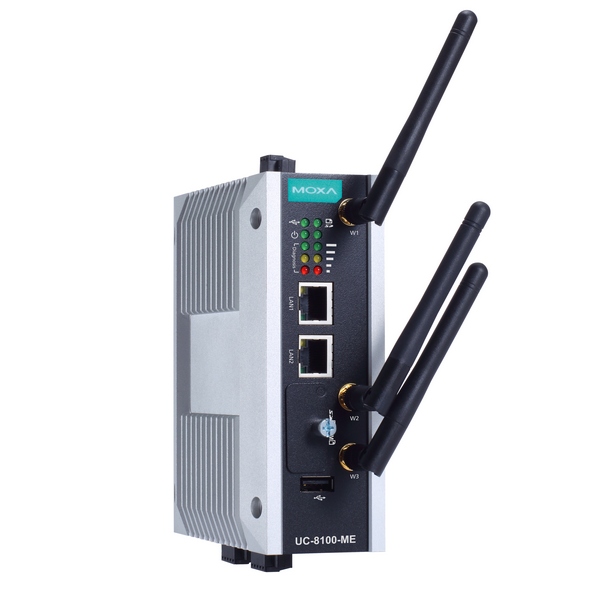

UC-8112-ME-T-LX
MOXA
SKU: 07132400
RISC-based communication-centric computer plateform with ARMv7 Cortex-A8 1000MHz CPU, 512MB DDR3 SDRAM, 4GB eMMC flash, 2 Ethernet, COM, SDHC/SDXC socket, USB Port, Debian ARM 7, Metal Case, -40...+85C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Ethernet
Controller Type
Integrated with Chipset
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, SIM Card Slot, DC input (terminal block), 2xCOM (terminal block), SD card slot, USB type A, Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
6 W
Software
Operating System Compatibility
Linux OS
Operating System Installed
Debian ARM 7
Dimensions and weight
Width
36 mm
Height
141 mm
Depth
119.9 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Shock
20 g @ IEC 60068-2-27, half sine wave, 30 ms
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.55 kg
Gross Weight
1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Ethernet
Controller Type
Integrated with Chipset
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, SIM Card Slot, DC input (terminal block), 2xCOM (terminal block), SD card slot, USB type A, Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
6 W
Software
Operating System Compatibility
Linux OS
Operating System Installed
Debian ARM 7
Dimensions and weight
Width
36 mm
Height
141 mm
Depth
119.9 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Shock
20 g @ IEC 60068-2-27, half sine wave, 30 ms
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.55 kg
Gross Weight
1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Ethernet
Controller Type
Integrated with Chipset
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, SIM Card Slot, DC input (terminal block), 2xCOM (terminal block), SD card slot, USB type A, Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
6 W
Software
Operating System Compatibility
Linux OS
Operating System Installed
Debian ARM 7
Dimensions and weight
Width
36 mm
Height
141 mm
Depth
119.9 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Shock
20 g @ IEC 60068-2-27, half sine wave, 30 ms
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.55 kg
Gross Weight
1 kg
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Wall
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.5 GB
Ethernet
Controller Type
Integrated with Chipset
10/100 Mbit/s
2
Interfaces
COM Total
3
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
SD Slots
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
SIM Card slots
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, SIM Card Slot, DC input (terminal block), 2xCOM (terminal block), SD card slot, USB type A, Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
6 W
Software
Operating System Compatibility
Linux OS
Operating System Installed
Debian ARM 7
Dimensions and weight
Width
36 mm
Height
141 mm
Depth
119.9 mm
Operating Conditions
Operating Temperature
-40..85 °C
Vibration
2 Grms @ IEC 60068-2-64, random wave, 5-500 Hz, 1 hr per axis
Shock
20 g @ IEC 60068-2-27, half sine wave, 30 ms
Standards and Certifications
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.55 kg
Gross Weight
1 kg
