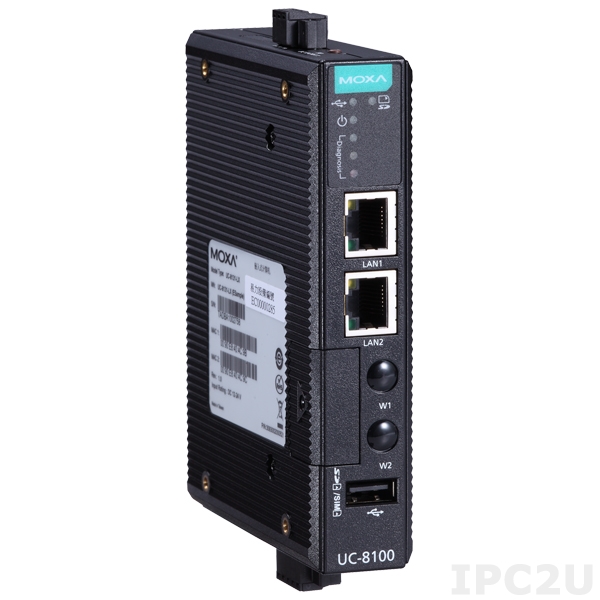

UC-8112-LX
MOXA
SKU: 06585100
RISC-based communication-centric computer plateform with 1 GHz CPU, Mini PCIe Socket for Cellular, 2 Ethernet, 2 Serial Port, SD Socket, USB Port, Micro SD Socket and Debian ARM 7
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Socket
CPU onboard
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
0.25 GB
Maximum Memory
0.5 GB
Assembly
Fixed on Board
Ethernet
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
USB 2.0
1
Drive interfaces
MicroSD
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
2xRJ45 Ethernet, SIM Card Slot, DC input (terminal block), 2xCOM (terminal block), 2xSMA, MicroSD card slot, USB type A, Console port RS-232 (4-pin)
System Power Input
Input Voltage DC
12 V
Power Consumption
5.4 W
Software
Operating System Installed
Linux OS
Dimensions and weight
Width
27 mm
Height
128 mm
Depth
101 mm
Operating Conditions
Operating Temperature
-10..60 °C
Vibration
2 Grms, random wave, 5-500 Hz, 1 hr per axis
Shock
20 G, half sine wave, 30 ms
Standards and Certifications
Certifications
CE, WEEE, FCC
Safety
CCC, UL 60950-1, EN 60950-1
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.42 kg
Gross Weight
0.42 kg
