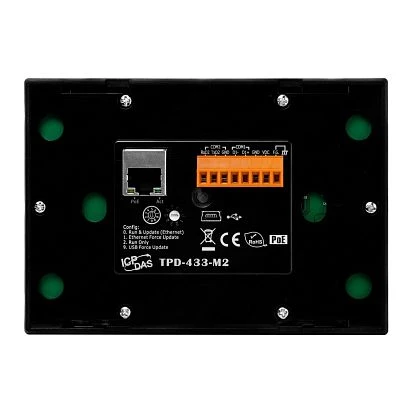

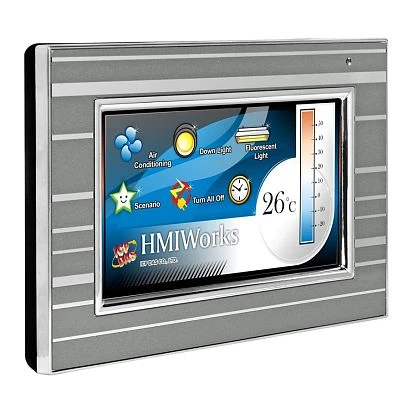

TPD-433-M2

TPD-433-M2

ICP DAS
SKU: 08764200

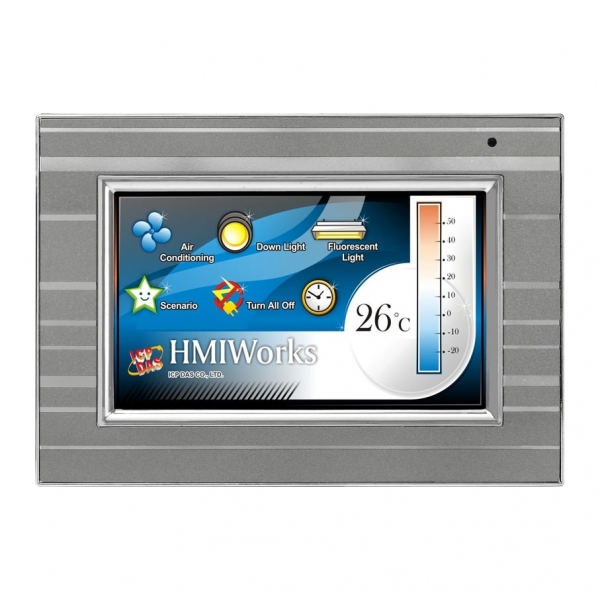

4.3" Touch HMI device with RS-485, Ethernet (10/100 Mbps), USB, RTC, Suitable for the Outlet Box in United States (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
16 MB
Ethernet
10/100 Mbit/s
1
Interfaces
RS-232
1
RS-485
1
Supported Protocols
Industrial Protocols
Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
140 mm
Depth
42 mm
Height
87 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Gross Weight
1 kg
