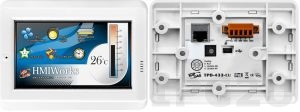

TPD-433-EU

ICP DAS
SKU: 06070600
4.3" Touch HMI device with RS-485, Ethernet (10/100 Mbps), USB, RTC, Suitable for the European 86mm x 86mm Outlet Box
End-of-life product

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
8 MB
Ethernet
10/100 Mbit/s
1
Interfaces
RS-485
2
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
126 mm
Depth
29 mm
Height
92 mm
Operating Conditions
Operating Temperature
-20..50 °C
Dimensions
Gross Weight
0.32 kg
