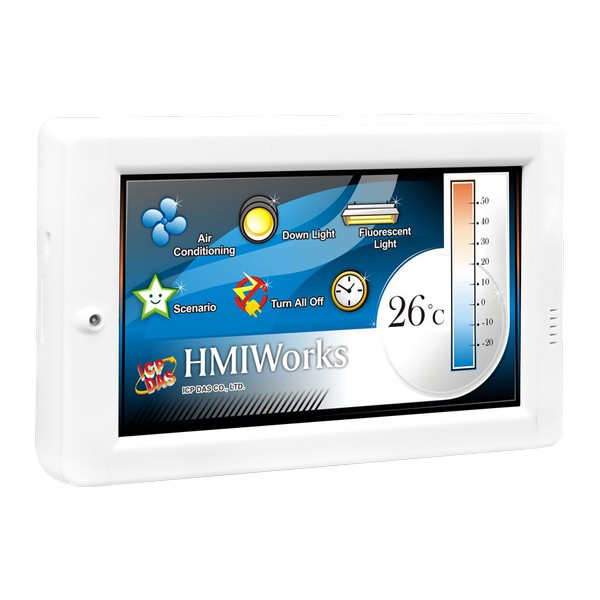

TPD-430-H-EU

TPD-430-H-EU

ICP DAS
SKU: 07683700
4.3" Touch HMI device with RS-485, USB, RTC, Suitable for the European 86mm x 86mm Outlet Box
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP40
Display
Display Type
LCD TFT
Diagonal
4.3 "
Maximum resolution
480x272 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Resistive
Installed drive
Flash Memory Capacity
16 MB
Interfaces
RS-485
1
Supported Protocols
Industrial Protocols
Modbus RTU master, Modbus RTU slave, DCON master
Software
Development Software
HMIWorks
Programming Method
Ladder Diagram, C/C++
System Power Input
Input Voltage DC
12..48 V
Dimensions and weight
Width
126 mm
Depth
29 mm
Height
92 mm
Operating Conditions
Operating Temperature
-20..50 °C
Standards and Certifications
Certifications
CE/FCC
Dimensions
Gross Weight
1 kg
