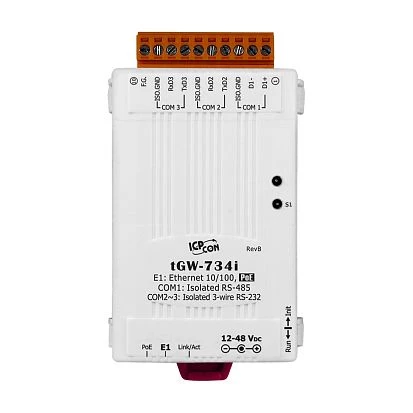

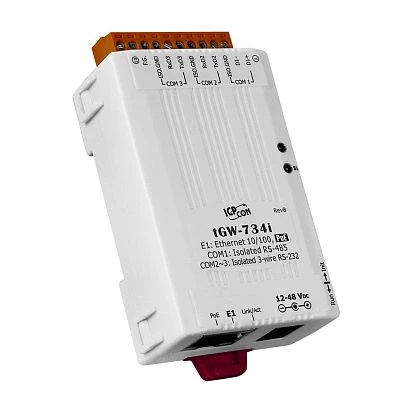

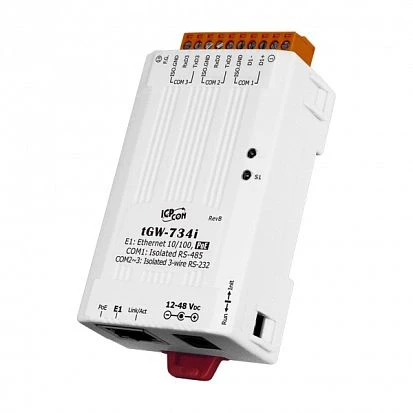

tGW-734i
ICP DAS
SKU: 08328300
Tiny Modbus/TCP to RTU/ASCII Gateway with PoE and 2 Isolated RS-232 and 1 Isolated 485 Ports (RoHS)
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-485
1
Isolation of COM Ports
3 kV (RS-232), 3 kV (RS-485)
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
95 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.07 kg
Gross Weight
0.11 kg
