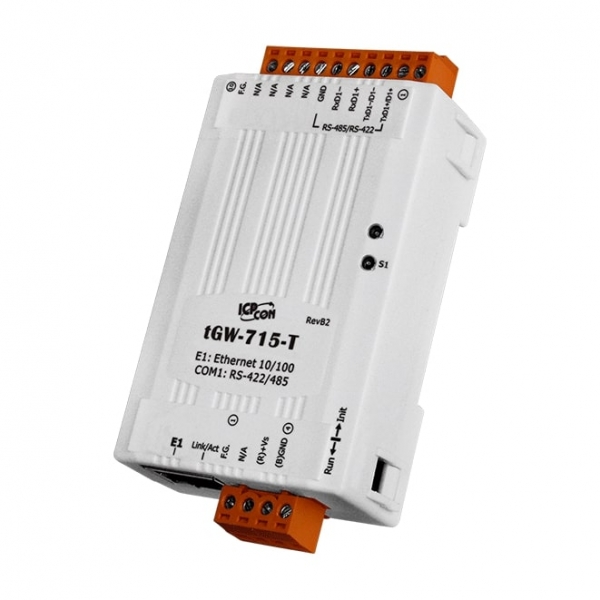

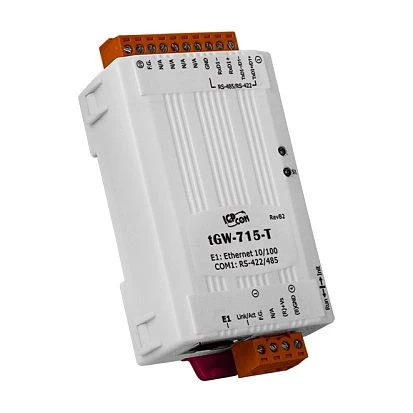

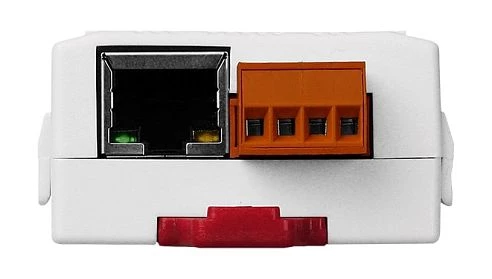

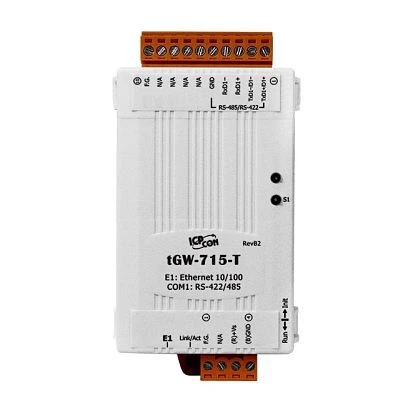

tGW-715-T

Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700

SKU: 09245500

Tiny Modbus/TCP to RTU/ASCII gateway, 1 RS-422/485, 12-48VDC

Price on request

Ethernet

Total Ethernet

10/100 Mbit/s

Interfaces

COM Total

RS-422/485

Supported Protocols

Industrial Protocols

Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave

System Power Input

Input Voltage DC

12..48 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Plastic Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

52 mm

Depth

27 mm

Height

95 mm

Connectors

Screw Terminal

Dimensions

Net Weight

0.1 kg

Gross Weight

0.1 kg

Documentation

Software

eSearch Utility
