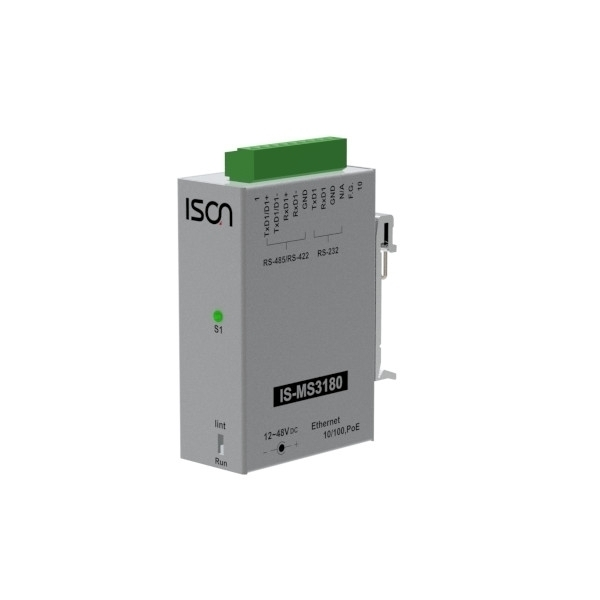

IS-MS3180

ISON
SKU: 80297000
Tiny Modbus TCP to RTU/ASCII Gateway, 1x10/100Base-FX, CPU 32-bit ARM, 1xCOM, 12..48 VDC, Operating Temperature -25..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
1
10/100 Mbit/s
1
PoE 10/100 Mbit/s
1
Interfaces
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, Modbus UDP master, Modbus ASCII
Managment Protocols
HTTP, UDP, DHCP, TFTP, TCP
IEEE Standard
EE 802.3af for Power-over-Ethernet
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
26 mm
Height
77.5 mm
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Safety
UL 60950-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.2 kg
Gross Weight
0.5 kg
