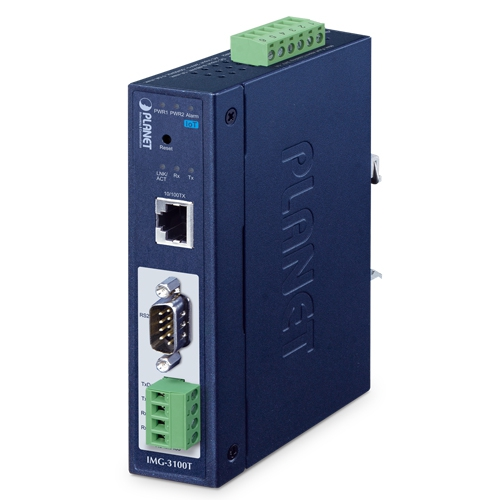

IMG-3100T
Planet
SKU: 80384300
Industrial Modbus Gateway, IP30, 1xRS-232/RS-422/RS-485, 1x10/100Base-TX, 9..48 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, NTP
Security Protocols
HTTPS
System Power Input
Input Voltage DC
9..48 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
87.8 mm
Height
135 mm
Standards and Certifications
Certifications
CE, rohs
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.4 kg
Gross Weight
0.8 kg
