tGW-718-T

tGW-718-T

ICP DAS
SKU: 09244600

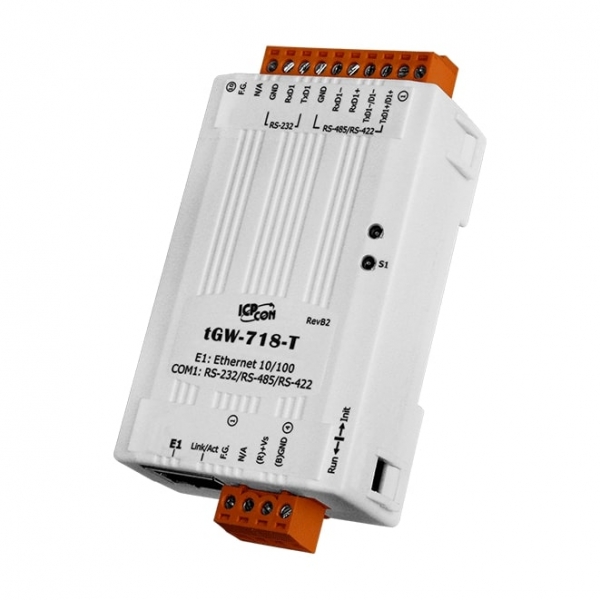

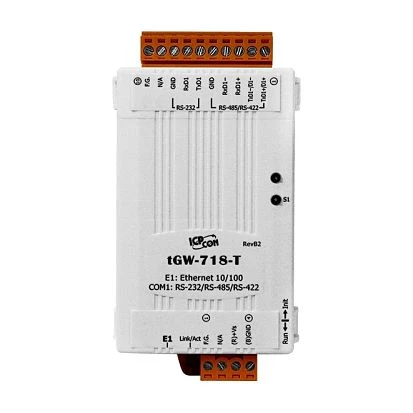

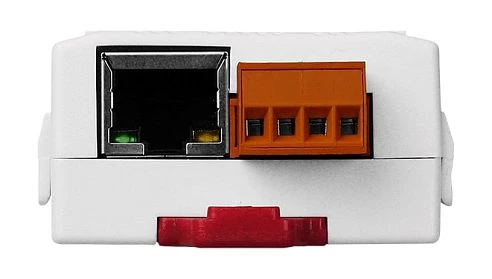

Tiny Modbus/TCP to RTU/ASCII gateway, 1xRS-232/422/485, 12-48VDC
Price on request
Available
Available
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
90 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.07 kg
Gross Weight
0.11 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
90 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.07 kg
Gross Weight
0.11 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
90 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.07 kg
Gross Weight
0.11 kg
Ethernet
Total Ethernet
1
10/100 Mbit/s
1
Interfaces
COM Total
1
RS-232/422/485
1
Supported Protocols
Industrial Protocols
Modbus TCP server, Modbus TCP client, Modbus RTU master, Modbus RTU slave, Modbus ASCII master, Modbus ASCII slave
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
52 mm
Depth
27 mm
Height
90 mm
Connectors
Connectors
Screw Terminal
Dimensions
Net Weight
0.07 kg
Gross Weight
0.11 kg
Documentation
Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700
Software
eSearch Utility
Documentation
Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700
Software
eSearch Utility
Documentation
Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700
Software
eSearch Utility
Documentation
Datasheet tGW-700 User Manual tGW-700 Quick start tGW-700
Software
eSearch Utility
