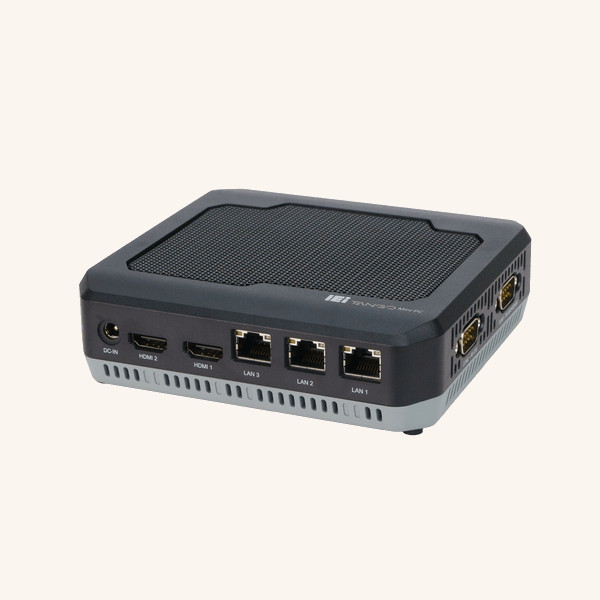

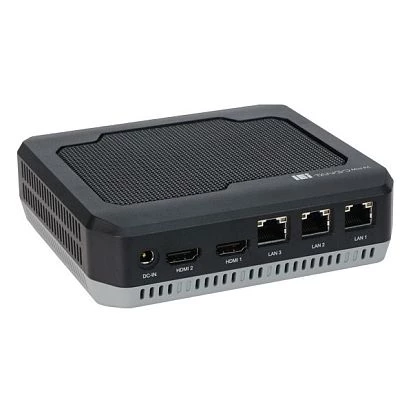

TANGO-3010-JWC
IEI
SKU: 10145900
Fanless Compact System, Intel Celeron J6412 2.0GHz CPU, 8GB LPDDR4x RAM (up to 16GB), 2xHDMI, 3x2.5GbE LAN, 2xUSB 2.0, 2xUSB 3.2, 1xRS232, 1xRS232/422/485, WiFi/BT, 1xM.2 2230 A-Key, 1xM.2 2280 M-Key, 1x2.5" Drive Bay, TPM 2.0, 12VDC-in, 0..40C
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis with Aluminum Heatsink
Mounting Configuration
Wall, Wall VESA 100, Wall VESA 75
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Intel Celeron J6412
Socket
FCBGA1493
Chipset
Chipset
Intel SoC
Memory
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Maximum Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Intel i225V
Total Ethernet
3
2,5 Gbit/s
3
Wi-Fi
Wi-Fi Standard
Yes, Intel Wi-Fi 6E AX211 (802.11a/b/g/n/ac/ax)
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
Storage Cage
2.5" Cage Intenal
1
Extension Slots
M.2
2
Connectors
Connectors
2xDB9, 2xHDMI, 3xRJ45 Ethernet, 4xUSB, DC Input
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
139 mm
Height
39.8 mm
Depth
137 mm
Operating Conditions
Vibration
10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.57 kg
Gross Weight
1.35 kg
