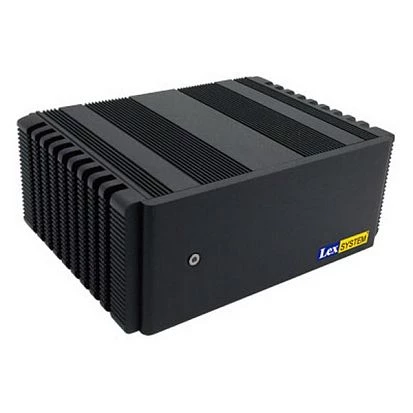

TA2435-00C

TA2435-00C

LEX COMPUTECH
SKU: 08448200
Embedded Server with 2I380D-D92, Intel Celeron J1900 2.0GHz, 2GB DDR3L, VGA, 3xGbE LAN, 2xCOM, 1xUSB 3.0/2.0, 2xUSB 2.0, MiniPCIe, mSATA, 2.5" SATA HDD Bay, 12-24VDC-in, with power adapter 12V/2.5A
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Desktop
Type
Fanless
CPU
Processor Installed
Intel Celeron J1900
Socket
CPU onboard
Max CPU frequency
2.42 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
Intel Gen7 graphic engine
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
3
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
1
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
1
Mini-PCIe/Mini Card
1
Connectors
Connectors

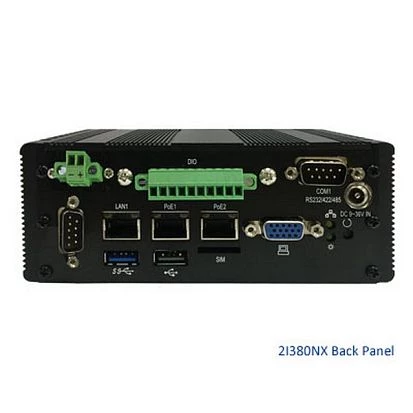

2xDB9, DB15 VGA, 3xRJ45 Ethernet, 4xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
12 V
Dimensions and weight
Width
145 mm
Height
56.5 mm
Depth
106.2 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
1.02 kg
Gross Weight
1.5 kg
