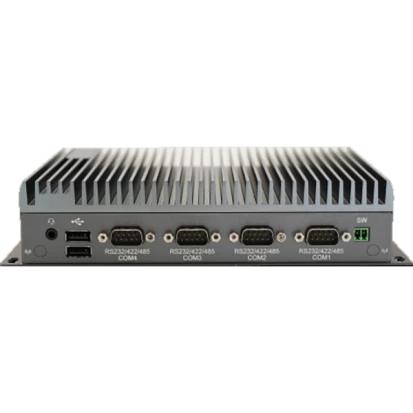

SB-244-1N97-M

SB-244-1N97-M

Arbor
SKU: 57902900
Industrial Fanless Box PC, Intel N97 3.6GHz CPU, Up to 16GB DDR4 RAM, HDMI/DP, 4xGbE LAN, 4xCOM (max. 6x), 2xUSB 3.2, 4xUSB 2.0, Audio, 2xSIM, 1x2.5" Drive Bay, 1xmPCIe, 1xM.2 2242 SATA, 1xM.2 2230, 1xM.2 3052, 12-36V DC-in, -20..60
Price on request
Available
Available

System configuration
Price with VAT
Price on request
RAM
Price on request
Price on request
Price on request
SSD M.2
Price on request
Price on request
Price on request
Price on request
External Power Adapter
Price on request
Accessories
Price on request
System configuration
Price with VAT
Price on request
RAM
Price on request
Price on request
Price on request
SSD M.2
Price on request
Price on request
Price on request
Price on request
External Power Adapter
Price on request
Accessories
Price on request

Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake
Processor Installed
Intel N97
Socket
FCBGA1264
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Maximum Memory
16 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
DisplayPort, HDMI
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
4
10/100/1000 Mbit/s
1
2,5 Gbit/s
3
Interfaces
COM Total
6
RS-232
2
RS-232/422/485
4
USB Total
8
USB 2.0
6
USB v3.x
2
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Audio
Audio Controller
Realtek ALC897
Drive interfaces
SATA 3
1
M.2
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2242 M, 2230 E, 3052 B
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
LED / Controls
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 4xRJ45 Ethernet, 6xUSB, Audio (in/out/Mic), Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
12..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Windows 10, Windows 11, Ubuntu 20.04
Dimensions and weight
Width
224 mm
Height
140 mm
Depth
46.2 mm
Operating Conditions
Operating Temperature
-20..60 °C
Humidity
5-95%
Vibration
5~500Hz, 2Grms, operation
Shock
Operation: 10G@11ms; Non-operation: 30G@11ms
Standards and Certifications
Certifications
CE/FCC
Dimensions
Net Weight
1.6 kg
Gross Weight
2.1 kg
