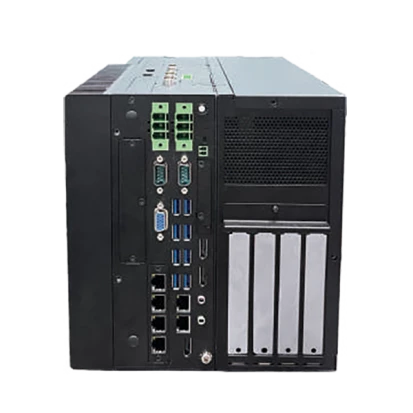

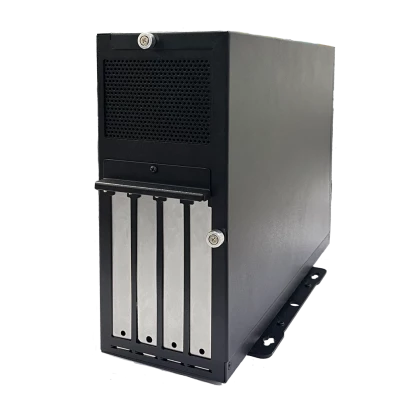

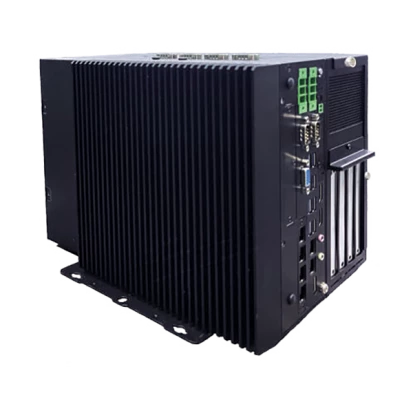

SE-5010-M

SE-5010-M

Arestech
SKU: 57836900
High-Performance Embedded Computer, Intel 13th/12th Gen Core i3/i5/i7/i9 CPU, R680E Chipset, up to 64GB DDR5 RAM, 3xDP, VGA, 2x2.5GbE, 4xPoE LAN opt, 8xUSB, 6xRS232/422/485, 4xM.2, 2x2.5" SATA Bay, 1xMiniPCIe, 2xSIM, 9..48VDC, -40..70C operating temp
Price on request
Available
Available

System configuration
Price with VAT
Price on request
Price on request
Price on request
System configuration
Price with VAT
Price on request
Price on request
Price on request

Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Memory
Form-factor
DDR5
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
VGA, 3xDisplayPort
Ethernet
Controller Type
Intel i350-AM4, Intel i226-LM
2,5 Gbit/s
2
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
8
PCI Express x16
1
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Mini-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
6xDB9, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
9 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 11
Dimensions and weight
Width
217 mm
Height
228 mm
Depth
325 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
5Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
50G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.95 kg
Gross Weight
6 kg
