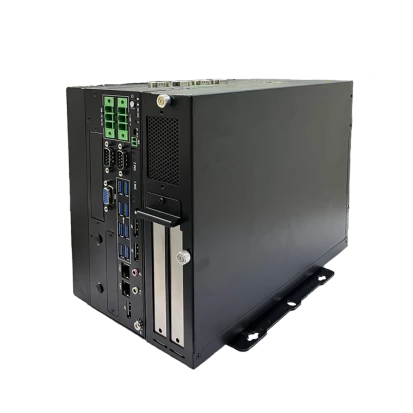

SE-5012
Arestech
SKU: 57837100
High-Performance Embedded Computer, Intel 13th/12th Gen Core i3/i5/i7/i9 CPU, R680E Chipset, up to 64GB DDR5 RAM, 3xDP, VGA, 2x2.5GbE, 4xPoE LAN opt., 8xUSB, 6xRS232/422/485, 4xM.2, 2x2.5" Drive Bay, 1xMiniPCIe, 1xPCIe x16, 2xSIM, 9..48VDC, -40..70C
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
СPU Generation/Family
Alder Lake, Raptor Lake
Socket
LGA1700
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Core i9, Pentium
Chipset
Chipset
Intel R680E
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
Yes
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Interfaces
VGA, 3xDisplayPort
Ethernet
Controller Type
Intel i350-AM4, Intel i226-LM
Total Ethernet
6
2,5 Gbit/s
2
PoE+ 10/100/1000 Mbit/s
4
Interfaces
COM Total
6
RS-232/422/485
6
USB Total
8
USB v3.x
8
Digital Input-Output
Channels of DIO
16
Drive interfaces
SATA 3
2
RAID Levels
0, 1, 5, 10
M.2
2
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Total
6
PCI Express x16
1
M.2
4
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Mini-SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED
Controls
On/Off
Connectors
Connectors
6xDB9, DB15 VGA, 2xRJ45 Ethernet, 8xUSB, Mic In, Line Out, DC input (terminal block), DIO (terminal block), 3xDisplay Port
System Power Input
Input Voltage DC
9..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows IoT Enterprise 10, Windows 11
Dimensions and weight
Width
177 mm
Height
228 mm
Depth
325 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-90%
Vibration
5Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
50G, half sine, 11ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
8.8 kg
Gross Weight
9.7 kg
