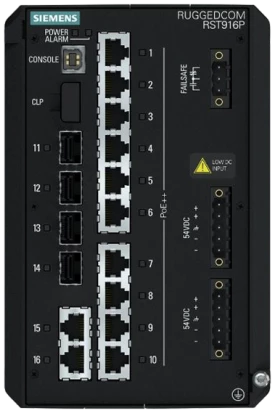

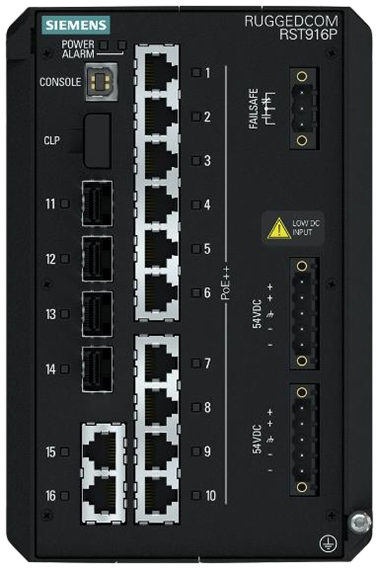

RUGGEDCOM-RST916P

Siemens AG
SKU: 57834800
RUGGEDCOM RST916P Industrial Layer 2 Managed Switch, IP30, 12x10/100/1000Base 10-Ports with PoE, 4x10GBase-X SFP+, USB console port, 52..57 VDC, Wide Temp. -40..85 C
Price on request
Available
Available

Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
10 Gbit/s SFP+ Ports
4
PoE 10/100/1000 Mbit/s
10
Switch Properties
MAC Table Size
16384
Packet Buffer Size
2048 kBit
Max. Number of VLANs
255
IGMP Groups
1024
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Telnet, SNTP Client, NTP, SNTP, RMON, TFTP, CoS, DHCP Client, IEEE 1588 PTP V2 (hardware-based), IEEE 1588 PTP V2 (software based), DHCP Option 66/67/82, GMRP, Private MIB, IGMP Snooping v1/v2/v3, IGMP Querier, SFTP
Reservation protocols
MSTP, RSTP, STP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+, IEEE 802.1X Network Access Control
System Power Input
Input Voltage DC
52..57 V
Construction
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
116 mm
Depth
177 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15 Subpart B Class A
Power Automation
IEC 61850-3
Dimensions
Net Weight
3.75 kg
Gross Weight
4.75 kg
