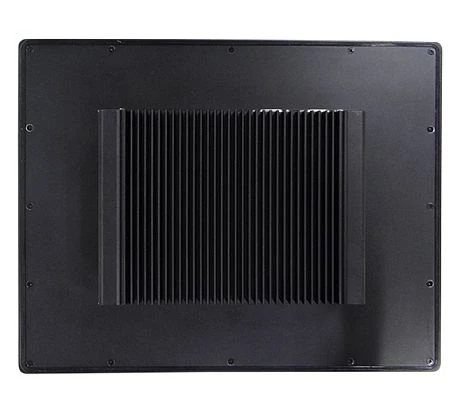

PPC-150P-TGL-8G
ICOP
SKU: 80155000
15" Fanless Panel PC, IP65 Front, 1024x768, 400cd/m2, PCAP Touch, Intel Core i5-1135G7 CPU, 8GB DDR4 RAM, 2xHDMI, 2xDP, 1x2.5GbE LAN, 1xGbE LAN, 4xCOM, 4xUSB 3.2, 2xUSB 2.0, 1xM.2 Key-M (NVME), 1xM.2 Key-E, Audio, 12-24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
400 Cd/m2
Touch Screen
Touch Screen Type
Capacitive
CPU
СPU Generation/Family
Tiger Lake
Processor Installed
Intel Core i5-1135G7
Socket
FCBGA 1449
Max CPU frequency
4.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Intel i219-LM, Intel i226V
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
6
USB 2.0
2
USB v3.x
4
Audio
Audio Controller
Realtek ALC888S
Drive interfaces
M.2
1
Extension Slots
Total
2
M.2
2
M.2 Form Factor
2242 M, 2280 M, 2230 E
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
4xDB9, 2xHDMI, 2xRJ45 Ethernet, 6xUSB, Mic In, Line Out, DC Input, 2xDisplayPort, DB9 GPIO
System Power Input
Input Voltage DC
12..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
359.63 mm
Height
282.98 mm
Depth
90.1 mm
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
3.8 kg
Gross Weight
5 kg
